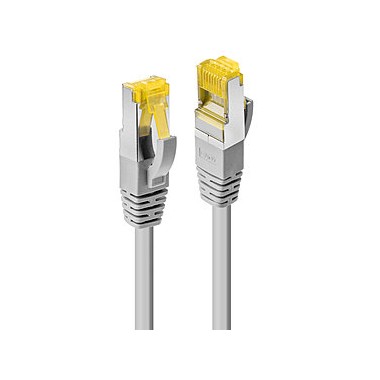

Lindy 47262 1m CAT7 Cable Grey
*Stock Are Subject to Availability
SKU
LIN47262
Product Reference :
47262|
$9.95
Cat.7 S/FTP network cable with support for bandwidth up to 600MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
SPECIFICATIONS
- CONNECTORS
- Connector A: RJ45 Male Cat.6A
- Connector B: RJ45 Male Cat.6A
- Housing Material: Polycarbonate
- Connector Plating: Nickel
- Pin Construction: Copper Alloy
- Pin Plating: Gold plated
- Dimensions: 11.6(w) x 22.8(d) x 8.3(h)mm
- CABLE CONSTRUCTION
- Length: 1.0m
- Colour: Grey
- Type: Cat.7
- Jacket Diameter: 6.5mm
- Jacket Material: LSZH
- Conductor Material: Copper
- Conductor Gauge: 26AWG
- Shielding: Aluminium Braid
- GENERAL
- Supported Bandwidth: 600MHz
- Nominal Attenuation: 51.4dB/100m @600MHz
- Minimum Band Radius: 78mm
- Operating Temperature: -10C - 60C
- Storage Temperature: -20C - 75C
- MISCELLANEOUS
- Packaging Type: Polybag
- Warranty (Years): 10
- Certificated: RoHS, REACH, UL, California Proposition 65
- OEM: 47262
