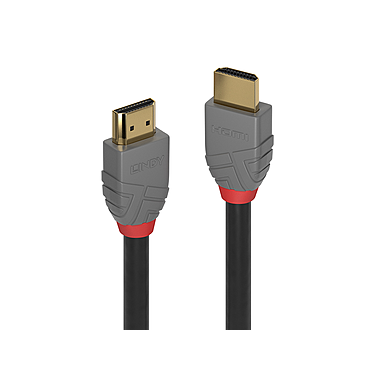

Lindy 36965 5m HDMI Cable AL

SPECIFICATIONS

• CONNECTORS

• Connector A: HDMI Type A Male

• Connector B: HDMI Type A Male

• Housing Material: PVC

• Connector Plating: 24K Gold 3um

• Pin Construction: Phosphor Copper

• Pin Plating: 24K Gold 3um

• Dimensions: 20 x 34.2 x 10.9mm

• CABLE CONSTRUCTION

• Length: 5.0m

• Standard: High Speed HDMI with Ethernet

• Colour: Black

• Type: Round

• Jacket Diameter: 6mm

• Jacket Material: PVC

• Conductor Material: Copper

• Conductor Gauge: 30AWG

• Shielding: Copper Braid, 65%

• Supported Bandwidth: 18Gbps

• Maximum Resolution: 4096 x 2160 at 60Hz 4:4:4 8bit

• Nominal Attenuation: 300kHz-825MHz less than 5dB, 825MHz-2.475GHz less than 5dB, 2.475GHz-4.125GHz less than 12dB, 4.125GHz-5.1GHz less than 20dB

• Minumum Band Radius: 48mm

• Operating Temperature: -30C - 80C

• Storage Temperature: -10C - 85C

• ATC Approved: Yes

• MISCELLANEOUS

• Packaging Type: Polybag

• Warranty: 10 Years

• Certificated: RoHS, REACH, UL, ATC

• OEM: 36965
