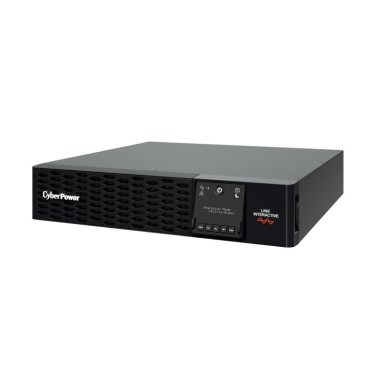

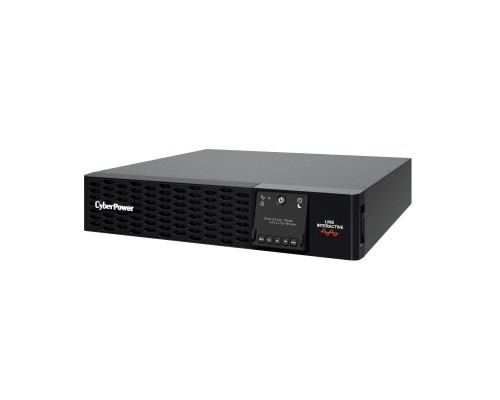

CYBERPOWER 3000VA RACKMOUNT WITH AUTOMATIC VOLTAGE REGULATION UPS
This Line-interactive UPS Topology solution delivers reliable power protection with Active PFC Compatibility and a High Output Power Factor, ensuring maximum efficiency for modern IT and network equipment. Designed for continuous uptime, it features Pure Sine Wave Output, advanced Automatic Voltage Regulation (AVR), and robust Surge and Spike Protection with integrated EMI and RFI Filtration.
The UPS supports Toolless Battery Replacement, Hot-swappable Batteries, and intelligent Battery Management Technology, enabling simplified maintenance and extended service life. With Quick Charging Technology and support for an Extended Battery Module (EBM), runtime can be easily expanded to meet critical application demands.
For enhanced load prioritization, the unit provides Critical and Non-critical Load Outlets, while comprehensive system control is enabled via an intuitive LCD Status Display. Connectivity options include a USB Connectivity Port, Serial Connectivity Port, and Emergency Power Off (EPO) Port, ensuring seamless integration into enterprise environments.
Optimized for energy efficiency, the UPS incorporates Energy Saving Technology and supports advanced monitoring through SNMP/HTTP Remote Management Capability (Optional) using PowerPanel Management Software. Its flexible Rack/Tower Convertible Configuration makes it ideal for data centers, server rooms, and network closets requiring scalable and efficient power protection.
General
Phase: Single Phase
Form Factor: Rackmount / Tower (Convertible)
UPS Topology: Line-Interactive
Energy Saving Technology: GreenPower UPS™ Bypass Technology
Energy Star Qualified: Yes
Electrical – Input
Nominal Input Voltage: 220 / 230 / 240 Vac
Input Voltage Range: 159 – 288 Vac
Adjustable Voltage Range: 151 – 302 Vac
Input Frequency: 50 ± 3 Hz / 60 ± 3 Hz
Input Frequency Detection: Auto-sensing
Rated Input Current: 16 A
Input Connector Type: IEC C20
Power Cord Length: 3 meters
Electrical – Output
Output Capacity: 3000 Watts
Power Factor: 1.0
On-Battery Waveform: Pure Sine Wave
On-Battery Voltage:
220 Vac ± 5%
230 Vac ± 5%
240 Vac ± 5%
On-Battery Frequency:
50 Hz ± 1%
60 Hz ± 1%
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Typical Transfer Time: 4 ms
Outlets
Total Outlets: 8
Outlet Types:
IEC C13 × 6
IEC C19 × 2
Battery & Surge Protected Outlets: 8
Critical Load Outlets (CL): 4
Non-Critical Load Outlets (NCL): 4
Battery System
Battery Type: Sealed Lead-Acid
Battery Cartridge: RBP0129
RBP Quantity: 1
Battery Quantity per RBP: 4
Built-in Battery Management Module: Yes
User-Replaceable Batteries: Yes
Hot-Swappable Batteries: Yes
Start on Battery: Yes
Battery Performance
Runtime at Half Load: 7.1 minutes
Runtime at Full Load: 1.7 minutes
Typical Recharge Time: 3 hours
Extended Runtime
Compatible Extended Battery Module (EBM): BP48VP2U02 (Built-in Charger)
Maximum EBM Quantity: Unlimited
Protection & Filtering
Overload Protection: Internal Current Limiting, Circuit Breaker
Surge Suppression Rating: 2430 Joules
EMI / RFI Filtration: Yes
Network Protection: RJ45 (1-in / 1-out)
Monitoring & Interface
LCD Display: Rotatable LCD (Manual Orientation)
LCD Information Displayed:
Operation Type
Power, Battery, Load Status
Faults & Warnings
Event & Log Information
LCD Settings & Control:
Mode & Alarm Settings
Input / Output Configuration
Battery Settings
Communication & Language
Communication & Management
USB Port: 1 × HID-compliant
Dry Contact (Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms:
Battery Mode
Low Battery
Overload
Overcharge
Overheat
Ethernet Data Transmission Speed: Up to 1 Gbps
Power Management Software: PowerPanel® Business (Recommended)
SNMP / HTTP Remote Monitoring: Supported (Optional RMCARD205)
Cloud Monitoring: PowerPanel® Cloud – 90 Days Free Trial
Accessories Included
Power Cords × 4
USB Cable × 1
Serial Cable × 1
EPO Cable × 1
Mechanical
Enclosure Construction: Metal
Rackmount Rail Kit: Included
Rackmount Ears: Included
Dimensions (W × H × D): 433 × 86.5 × 500 mm
Weight: 32.8 kg
Certifications & Compliance
CE
FCC Class A
UL
cUL
RCM
VCCI
UKCA
