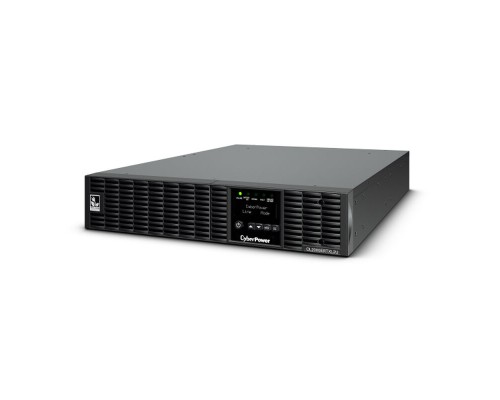

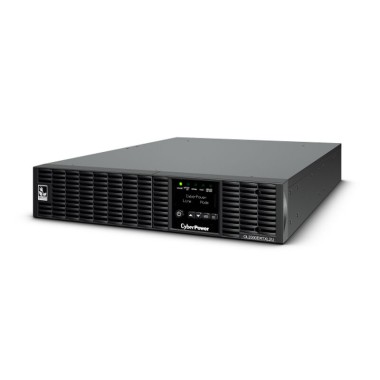

CP OL2000VA UPS RACK TOWER
This Online (Double Conversion) UPS Topology provides continuous, high-quality power protection with Zero Transfer Time, making it ideal for mission-critical IT, networking, and industrial applications. Fully Generator Compatible, the UPS ensures stable operation even with unstable power sources and includes advanced Overload Protection for maximum system reliability.
Designed for flexible power management, the UPS features Critical and Non-critical Load Outlets for prioritized load control and intelligent Smart Battery Management (SBM) to extend battery life. Support for an Extended Battery Module (EBM) allows scalable runtime expansion, while Hot-swappable Batteries minimize downtime during maintenance.
Power quality is enhanced through Pure Sine Wave Output, robust Surge and Spike Protection, and integrated EMI and RFI Filtration. Comprehensive monitoring and control are provided via a high-visibility LCD Status Display with a Detachable LCD Panel, along with a dedicated Emergency Power Off (EPO) Port for safety compliance.
For centralized monitoring, the UPS supports SNMP/HTTP Remote Management Capability (Optional) and seamless integration with PowerPanel Management Software. Additional protection is provided through Phone/Fax/Modem/DSL/Network Protection, while the ECO Mode optimizes energy efficiency. Its flexible Rack/Tower Convertible Configuration makes this UPS well-suited for data centers, server rooms, and enterprise network environments requiring reliable, scalable power protection.
General
Phase: Single Phase
Form Factor: Rackmount / Tower (Convertible)
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode, Efficiency > 96%
Generator Compatibility: Yes
Electrical – Input
Input Voltage Range: 190 – 300 Vac
Adjustable Voltage Range (Load Dependent):
0–60% Load: 120 – 139 Vac
0–70% Load: 140 – 159 Vac
0–80% Load: 160 – 179 Vac
0–90% Load: 180 – 189 Vac
0–100% Load: 190 – 300 Vac
Input Frequency: 50 ± 10 Hz / 60 ± 10 Hz
Input Frequency Detection: Auto-sensing
Rated Input Current: 10 A
Input Power Factor: 0.99
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: IEC C14 × 1
Power Cord Length: 3 meters
Electrical – Output
Output Capacity: 1800 Watts
Output Power Factor: 0.9
On-Battery Waveform: Pure Sine Wave
On-Battery Voltage:
200 Vac ± 2%
208 Vac ± 2%
220 Vac ± 2%
230 Vac ± 2%
240 Vac ± 2%
Output Voltage Setting: Configurable
On-Battery Frequency: 50 ± 0.5% / 60 ± 0.5%
Output Frequency Setting: Configurable
ECO Mode Voltage Tolerance: ±10% / ±15%
Crest Factor: 3:1
Power Quality
Harmonic Distortion (Linear Load): THD ≤ 3%
Harmonic Distortion (Non-linear Load): THD ≤ 5%
Overload & Bypass Protection
Overload Protection: Internal Current Limiting, Circuit Breaker
Line Mode Overload:
105–125% Load: 1 minute
125–150% Load: 10 seconds
Battery Mode Overload:
105–130% Load: 10 seconds
130–150% Load: 2 seconds
Bypass Mode Protection: Circuit Breaker
Internal Bypass: Automatic Bypass, Manual Bypass
Outlets
Total Outlets: 9
Outlet Types:
IEC C13 × 8
IEC C19 × 1
Battery & Surge Protected Outlets: 9
Critical Load Outlets (CL): 5
Non-Critical Load Outlets (NCL): 4
Performance
Typical Transfer Time: 0 ms (True Online)
Runtime at Half Load: 20 minutes
Runtime at Full Load: 6.5 minutes
Typical Recharge Time: 5 hours
Start on Battery: Yes
Battery System
Battery Type: Sealed Lead-Acid
Smart Battery Management (SBM): Yes
Hot-Swappable Batteries: Yes
Battery Cartridge Model: RBP0076
Battery Cartridge Quantity: 1
Battery Quantity per RBP: 6
Battery Voltage per RBP: 72 V
Extended Runtime
Compatible Extended Battery Module (EBM): BPE72V60ART2US
Maximum EBM Quantity: 10 units
Protection & Filtering
Surge Suppression Rating: 1335 Joules
EMI / RFI Filtration: Yes
Phone / Network Protection: RJ11 / RJ45 Combo (1-in / 1-out)
Monitoring & User Interface
LCD Information Display:
Operation Type
Power, Battery & Load Status
Faults & Warnings
Events & Logs
LCD Settings & Control:
Mode & Alarm Settings
Input / Output Configuration
Battery Settings
Fault & Warning Management
Communication, Security & Language Settings
LED Indicators:
Power On, Line Mode, Battery Mode, Bypass Mode
Battery Capacity, Low Battery
Overload, UPS Fault, Wiring Fault, Replace Battery
Communication & Management
USB Port: 1 × HID-compliant
Dry Contact (Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms:
Battery Mode
Low Battery
Overload
Overcharge
Overheat
UPS Fault
Replace Battery
Power Management Software: PowerPanel® Business (Recommended)
SNMP / HTTP Remote Monitoring: Supported with Optional RMCARD205
Accessories Included
Power Cord × 1
USB Cable × 1
Serial Cable × 1
Phone Line Cable × 1
Mechanical
Enclosure Construction: Metal
Rackmount Rail Kit: Included
Rackmount Ears: Included
Dimensions (W × H × D): 433 × 88 × 600 mm
Weight: 31 kg
Certifications & Compliance
CE
BSMI
C-Tick
