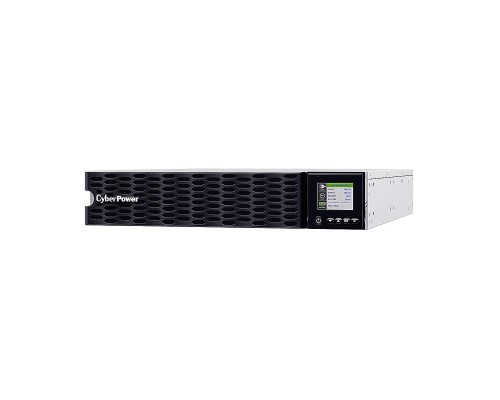

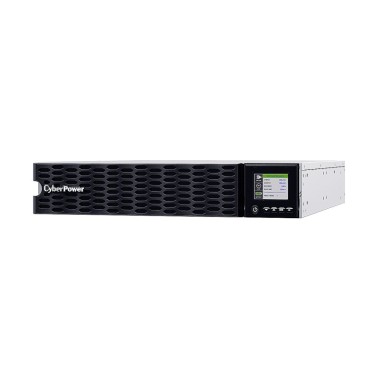

CP 6000VA/W Rack Tower UPS
The high performance online double-conversion UPS supplies optimal power and functionality with compact design APPLICATION • SOHO Oce • Oce • Back Oce • Server Room • Data Center • Supermarket • Factory • Airport • Train Station SERIES FEATURES • Online (Double Conversion) UPS Topology • Energy Saving Technology • Generator Compatible • Critical/Non-critical Load Outlets • Zero Transfer Time • Battery Management Technology • Smart Battery Management (SBM) • Extended Battery Module (EBM) • Graphical LCD Display • PowerPanel® Management Software • SNMP/HTTP Remote Management Capability • Rack/Tower Convertible Configurations Designed for oce and data center applications, the Online (High-Density) adopts double-conversion topology to provide seamless Pure Sine Wave output. The generator-compatible UPSs feature hot-swappable battery packs for maintenance without power interruption. The products also adopt ECO Mode to save on energy costs, Battery Management Technology to help batteries obtain optimal lifespan, and color LCD Display to display key information at a glance. The power management software allows users to easily control and monitor the UPS system.
- GENERAL
- Phase: Single Phase
- Form Factor: Rackmount, Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency greater than 97%
- Active PFC Compatibility: Yes
- Input
- Generator Compatibility: Yes
- Nominal Input Voltage (Vac): 200 (+-2%), 208 (+-2%), 220 (+-2%), 230 (+-2%), 240 (+-2%)
- Input Voltage Range (Vac): 200 to 240
- Adjustable Voltage Range (Vac): 0 to 25% Load for 120 to 139 Vac, 0 to 50% Load for 140 to 159 Vac, 0 to 75% Load for 160 to 179 Vac, 0 to 100% Load for 180 to 280 Vac
- Input Frequency (Hz): 50 +-10, 60 +-10
- Input Frequency Detection: Auto-sensing
- Rated Input Current (A): 32
- Input Power Factor: 0.99
- Input Connector Type: Hardwire Terminal Block
- Output
- Capacity (VA): 6000
- Capacity (Watts): 6000
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage(s) (Vac): 200 (+-2%), 208 (+-2%), 220 (+-2%), 230 (+-2%), 240 (+-2%)
- Output Voltage Setting: Configurable
- On Battery Frequency (Hz): 50 +- 0.5%, 60 +- 0.5%
- Output Frequency Setting: Configurable
- Power Factor: 1
- ECO Mode Voltage Tolerance: +- 10 %, +- 15 %
- Overload Protection: Internal Current Limiting, Circuit Breaker
- Overload Protection (Line Mode): 105 to 125% Load for 1 min, 125 to 150% Load for 10 sec
- Overload Protection (Battery Mode): 105 to 30% Load for 10 sec, 130 to 150% Load for 2 sec
- Overload Protection (Bypass Mode): Circuit Breaker
- Crest Factor: 3:1
- Harmonic Distortion (Linear Load): THD less than 3%
- Harmonic Distortion (Non-linear Load): THD less than 5%
- Internal Bypass: Automatic Bypass, Manual Bypass
- Outlet(s) - Total: 7
- Outlet Type: IEC C13 x 4, IEC C19 x 2, Hardwire Terminal Block x 1
- Outlet(s) - Battery and Surge Protected: 7
- Outlet(s) - Critical Load (CL): 4
- Outlet(s) - Non-Critical Load (NCL): 3
- Typical Transfer Time (ms): 0
- Battery
- Runtime at Half Load (min): 4.9
- Runtime at Full Load (min): 1.4
- Typical Recharge Time (Hours): 4
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- Built-in Battery Management Module: Yes
- User-replaceable: Yes - Qualified Personnel Only
- Hot-swappable: Yes
- Battery Type: Sealed Lead-acid
- Battery Cartridge: RBP0144
- RBP Quantity (pcs): 1
- Battery Quantity (Each RBP) (pcs): 12
- Battery Voltage (Each RBP) (V): 144
- Single Battery Capacity (AH): 12 V 7 AH
- Compatible Extended Battery Module (EBM): BPE144VL2U01 (Built-in Charger)
- Max. EBM Quantity (pcs): 10
- Surge Protection and Filtering
- Surge Suppression (Joules): 2430
- EMI/RFI Filtration: Yes
- Management and Communications
- LCD Panel: Yes
- Colour LCD: Yes
- LCD Orientation: Rotatable LCD - Automatic, Rotatable LCD - via Setting
- Tiltable LCD Panel: 18 degree
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault and Warning, Other Information, Event and Log
- LCD Setting and Control: Mode Setting, Alarm Setting, Input and Output, Battery Setting, Fault and Warning, Communication, Event and Log, Security Setting, Language
- LED Indicators: Power On
- HID Compliant USB Port(s): 1
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
- Management Cable (pcs): USB Cable x1, Serial Cable x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included
- Physical
- Enclosure Construction: Metal
- Colour: Black
- Rackmount Rail: Yes
- Rackmount Ears: Yes
- High Density Design: Yes
- Physical Size - UPS Module
- Dimensions: 433(w) x 86.5(h) x 720(d)mm
- Weight: 42kg
- Installed Rack Height (U): 2
