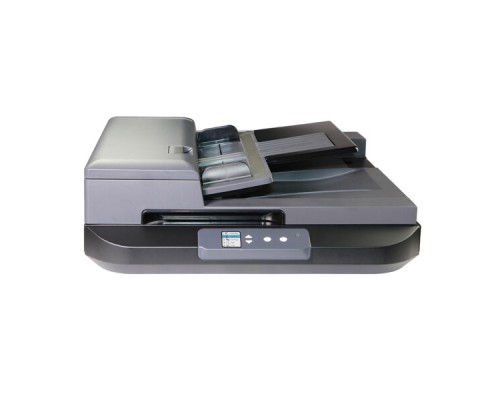

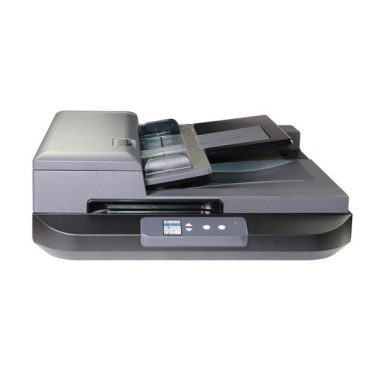

AVISION AD5800 A3 FLATBED DOCUMENT SCANNER
High-Speed A3 Flatbed & ADF Document Scanner is designed for businesses that demand fast, accurate, and versatile scanning. With blazing speeds of up to 80 ppm / 160 ipm in both color and monochrome at 300 dpi, this scanner is perfect for handling high volumes of documents—up to 15,000 pages per day—with ease.
Thanks to its advanced CMOS-CIS sensor and LED light source, the scanner delivers crisp, high-resolution images at 600 x 600 dpi with output up to 1200 x 1200 dpi. It supports a wide media range, from standard A4 sheets to A3 documents, long-page scanning up to 236 inches, and even embossed card scanning up to 1.25 mm thick.
Its robust 100-sheet ADF, ultrasonic multi-feed detection, and auto deskew and cropping ensure efficient, error-free scanning, even for mixed-size batches. Whether scanning invoices, contracts, forms, or ID cards, the scanner adapts to every office need.
With support for multiple file formats (including PDF, TIFF, JPEG, Word, Excel, and more), and bundled with TWAIN/ISIS drivers, Button Manager, AVScan, and PaperPort, the device seamlessly integrates into your digital workflow. It’s compatible with Windows, macOS, and Linux, making it a flexible solution for any IT environment.
Compact yet powerful, this scanner is ideal for document-heavy environments such as legal, finance, healthcare, and government sectors—where speed, precision, and reliability are essential.
Model: High-Speed A3 Flatbed & ADF Document Scanner
OEM: [Insert OEM or Model Number]
Core Technology
Imaging Technology: CMOS Contact Image Sensor (CIS)
Light Source: LED
Memory: 1 GB SDRAM
Scanning Method: Flatbed and Automatic Document Feeder (ADF)
Performance
Optical Resolution: 600 x 600 dpi
Maximum Output Resolution: 1200 x 1200 dpi
Scanning Speed (A4 @ 200/300 dpi):
Black & White / Colour
Simplex: 80 pages per minute (ppm)
Duplex: 160 images per minute (ipm)
Recommended Daily Volume: Up to 15,000 pages/day
Halftone Patterns: Dither and Error Diffusion
Grayscale Mode: 16-bit input / 8-bit output
Colour Mode: 48-bit input / 24-bit output
Media Handling
ADF Capacity: 100 sheets (80 g/m²)
Supported Paper Weight: 60 – 105 g/m² (16 to 28 lb)
Scan Size (ADF):
Minimum: 105 x 149 mm
Maximum: 297 x 432 mm (A3 / 11.7 x 17 in.)
Scan Size (Flatbed):
Maximum: 297 x 420 mm (A3 / 11.69 x 16.5 in.)
Long Paper Mode: Up to 6000 mm (236 in.) at 200 dpi (Colour Duplex)
Card Scanning: Supported for embossed and rigid cards
Interface & Connectivity
Interface: USB 3.2 Gen1x1
File Format Support
Image & Document Outputs: BMP, PNG, GIF, JPEG, TIFF (Single & Multi-page), PDF (Single & Multi-page), Multi-TIFF
OCR & Editable Formats: RTF, TXT, XPS, DOC, XLS, PPT, DOCX, XLSX, PPTX, HTML
OCR available via iScan (select models)
Software & Drivers
Drivers: TWAIN, ISIS
Bundled Applications:
Button Manager (One-touch scan to folder/cloud/email)
PaperPort
AVScan
System Compatibility
Operating Systems:
Windows: 7, 8, 10, 11
Linux: Fedora, openSUSE, Debian, Ubuntu
macOS: 10.12 – 10.15, 11 (Big Sur), 12 (Monterey), 13 (Ventura), 14 (Sonoma)
Power & Environmental
Power Consumption:
Operation: < 50 W
Ready Mode: < 15 W
Sleep Mode: < 2.9 W
Off Mode: < 0.3 W
Physical Specifications
Dimensions (W x D x H): 585 x 574 x 497 mm (23.03 x 22.6 x 19.57 in.)
Weight: 11 kg
Special Features
Ultrasonic Multi-Feed Detection: Yes
Dust-Protected Foldable Trays: Yes
Compact A3 Design: Suitable for space-constrained environments
