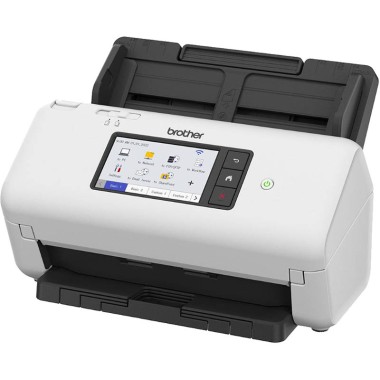

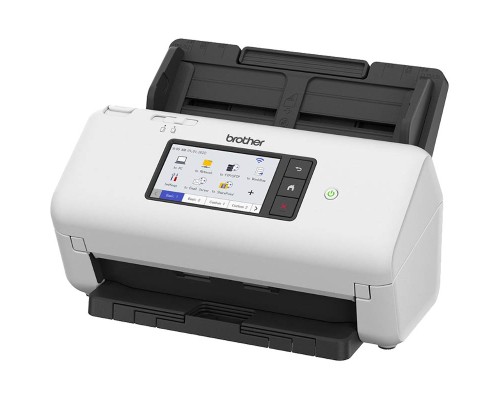

BROTHER ADS-4700W PROFESSIONAL DESKTOP DOCUMENT SCANNER A4
The Brother ADS-4700W is a robust and versatile duplex document scanner, designed to meet the needs of businesses that require efficient, high-quality document capture. With a 600 dpi optical resolution, 1,200 dpi interpolated resolution, and 80-sheet ADF capacity, it excels in high-volume scanning environments. The addition of dual-band wireless connectivity, including Wi-Fi Direct and network support, offers flexibility for both wired and wireless environments. The 4.3-inch LCD touchscreen simplifies operation, while the advanced security features and compliance with TWAIN and ISIS standards ensure seamless integration into professional workflows.
Ideal for businesses that need a reliable, fast, and secure document scanning solution, the ADS-4700W enhances productivity while maintaining high-quality output for all your scanning needs.
Specifications
General Overview:
Model: Brother ADS-4700W
Scanner Type: Sheet-fed, Duplex (Two-sided scanning in a single pass)
Product Dimensions:
Width: 299.5 mm
Depth: 190.5 mm
Height: 215.9 mm
Weight: 2.75 kg
Warranty: 1-Year Return to Base Warranty
Scanning Capabilities:
Optical Resolution: 600 dpi x 600 dpi (high-quality scanning for detailed image capture)
Interpolated Resolution: Up to 1,200 dpi x 1,200 dpi (enhanced resolution for finer details)
Color Depth:
Input: 48-bit color depth for superior color capture.
Output: 24-bit color depth for optimal image fidelity.
Grayscale: 256 levels, providing smooth transitions and rich black-and-white scans.
Scanning Speed:
Single-sided (Simplex): Up to 40 ppm (pages per minute) at 300 dpi.
Double-sided (Duplex): Up to 80 ipm (images per minute) at 300 dpi.
ADF (Automatic Document Feeder):
Capacity: 80 sheets (20 lb / 80 g/m² A4/Letter size).
Supports: Mixed media including plastic cards, business cards, photos, and documents of various sizes.
Paper Handling:
Document Sizes:
Single Paper: Width: 50.8 mm to 215.9 mm, Length: 50.8 mm to 355.6 mm.
Multiple Papers: Width: 50.8 mm to 215.9 mm, Length: 50.8 mm to 355.6 mm.
Scanning Width: Up to 215.9 mm (ideal for A4 and Letter-sized documents).
Paper Weight: Supports media ranging from 20 lb to 255 g/m².
Paper Types: Plain paper, photos, business cards, plastic cards, and other media types.
Display and User Interface:
LCD Display:
109.2 mm (4.3-inch) TFT color touchscreen.
Provides an intuitive interface for managing scanning tasks, adjusting settings, and viewing scan status.
Connectivity Options:
USB 3.0: High-speed data transfer for seamless integration with computers and network environments.
LAN (Wired Ethernet): 10Base-T/100Base-TX for reliable, fast, and secure wired network scanning.
Wireless LAN:
2.4 GHz Wi-Fi (Infrastructure Mode: IEEE 802.11b/g/n)
Wi-Fi Direct: Direct wireless connection to compatible devices without requiring a router.
Network Security:
Wireless Security Protocols:
WEP 64/128-bit
WPA-PSK (TKIP/AES)
WPA2-PSK (AES)
WPA3: Enhanced security for modern encryption standards.
Setup Support:
WPS (Wi-Fi Protected Setup): Simplifies network configuration.
WLAN Assistant: Helps manage network settings and connection troubleshooting.
Power Consumption:
Power Source: AC 100-240V, 50/60 Hz.
Power Consumption:
Scanning Mode: 26W for energy-efficient operation during scanning.
Ready Mode: 8.6W.
Power Save/Deep Sleep: 1.7W (low power consumption when idle).
Power Off: 0.1W (very low standby power consumption).
Environmental Specifications:
Operating Temperature: 5°C to 35°C.
Operating Humidity: 20% to 80% (non-condensing).
Storage Temperature: -25°C to 60°C.
Storage Humidity: 10% to 90%.
Software and Driver Support:
TWAIN Compliant (Windows):
Windows Server 2012 / 2016 / 2019
Windows 7 (SP1) / Windows 8.1 / Windows 10
TWAIN Compliant (Mac OS):
macOS v10.14.x, 10.15.x, 11.0.x, 11.1.x
WIA Compliant (Windows):
Windows 7 (SP1) / Windows 8.1 / Windows 10
ICA Compliant (Mac OS):
macOS v10.14.x, 10.15.x, 11.0.x, 11.1.x
ISIS™ Compliant (Windows):
Windows 7 (SP1) / Windows 8.1 / Windows 10
Additional Features:
Security: WPA3 wireless encryption and other security protocols ensure safe and secure scanning over networks.
Document Management: Compatible with leading document management software and cloud-based platforms.
Energy-Efficient: Energy Star certified, reducing energy consumption and overall environmental impact.
Multi-Page Scanning: High-volume scanning with the 80-sheet ADF, increasing productivity and reducing the need for manual intervention.
Auto Document Detection: Automatically detects the document size and orientation for efficient scanning.
Product Package Includes:
Brother ADS-4700W Scanner
AC Adapter
USB 3.0 Cable
Quick Setup Guide
