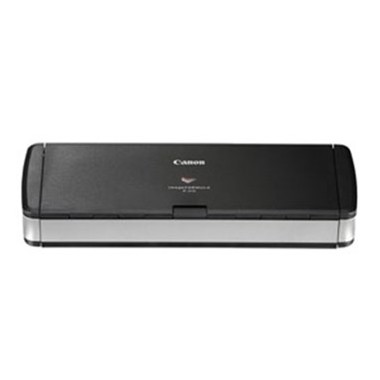

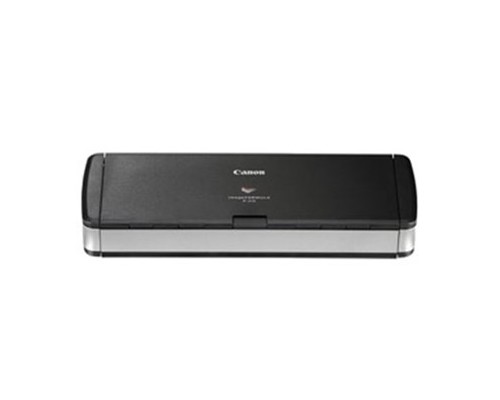

P-215 MKII HIGH SPEED PORTABLE DOCUMENT SCANNER ID CARD SCANNING SLOT
Canon Portable Scanner
Super-fast and simple to operate, the P-215II is a lightweight, compact scanner that can be used anywhere, anytime. You donÕt need access to a power supply Ñ all you need to start scanning is a USB connection. This machine will open up all kinds of new scanning possibilities.
Key Specifications:
- Document Feeding Ð Automatic sheet feeding
- Document Size Ð Plain Paper: Width: 50.8 to 216 mm, Length: 70 to 356 mm; Postcard: Width: 88.9 to 108 mm, Length: 127 to 152.4 mm; Business Card: Width: 49 to 55 mm, Length: 85 to 91 mm; Card: 54 mm x 86 mm (ISO standard)
- Document Thickness and Weight Ð Plain Paper: 0.06 to 0.15 mm (0.0024Ó to 0.0059Ó), 52 to 128 g/m2 (14 to 34 lb bond); Postcard: 0.15 to 0.3 mm (0.0059Ó to 0.00118Ó), 128 to 255 g/m2 (34 to 68 lb bond); Business card: 0.15 to 0.3 mm (0.0059Ó to 0.00118Ó), 128 to 255 g/m2 (34 to 68 lb bond) ; Card: 0.76 mm (0.03Ó) ISO7810 ID-1 compatible
- Scanning Sensor Ð Contact image sensor
- Light Source Ð LED (Red, Green, and Blue)
- Scanning Side Ð Simplex / Duplex
- Scanning Modes Ð Black and White, Error Diffusion, Advanced Text Enhancement II, 8bit (256-level) Grayscale, 24-bit Colour
- Scanning Resolutions Ð 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
- Scanning Speed (A4/LTR) Ð When using USB 2.0 bus power: B&W/Grayscale: 200 dpi/300 dpi: 12 ppm (Simplex), 14 ipm (Duplex); Colour: 200 dpi: 10 ppm (Simplex), 10 ipm (Duplex), 300 dpi: 6 ppm (Simplex), 6 ipm (Duplex)
Type
Desktop sheet-fed scanner
Document feeding
Automatic sheet feeding
Document Size
Plain Paper: Width: 50.8 to 216 mm (2 to 8.5”), Length: 70 to 356 mm (2.76 to 14”) (You can scan documents up to 1,000 mm (39.4”) long by setting the scanner to the Long Document mode.) Postcard: Width: 88.9 to 108 mm (3.5 to 4.25”), Length: 127 to 152.4 mm (5 to 6”) Business Card: Width: 49 to 55 mm (1.93 to 2.17”), Length: 85 to 91 mm (3.35 to 3.58”) Card: 54 x 86 mm (2.1 x 3.4”) (ISO standard)
Document Thickness and Weight
Plain Paper: 0.06 to 0.15 mm (0.0024” to 0.0059”), 52 to 128 g/m2 (14 to 34 lb bond) Postcard: 0.15 to 0.3 mm (0.0059” to 0.00118”), 128 to 255 g/m2 (34 to 68 lb bond) Business card: 0.15 to 0.3 mm (0.0059” to 0.00118”), 128 to 255 g/m2 (34 to 68 lb bond) Card: 0.76 mm (0.03”) ISO7810 ID-1 compatible
Feeding capacity
3 mm stack (including curls) or 20 sheets of 64 g/m2 (16 lb. bond)
Scanning element
Contact image sensor
Light Source
LED (Red, Green, and Blue)
Scanning Side
Simplex / Duplex
Scanning Modes
Black and White, Error Diffusion, Advanced Text Enhancement II, 8bit (256-level) Grayscale, 24-bit Colour
Scanning Resolution
150 x 150 dpi / 200 x 200 dpi / 240 x 240 dpi / 300 x 300 dpi
/ 400 x 400 dpi / 600 x 600 dpi
Scanning speed1 (A4/LTR)
When using USB 2.0 bus power: B&W/Grayscale: 200 dpi/300 dpi: 12 ppm (Simplex), 14 ipm (Duplex) Colour: 200 dpi: 10 ppm (Simplex), 10 ipm (Duplex) 300 dpi: 6 ppm (Simplex), 6 ipm (Duplex) When using USB 3.02, USB 2.0 bus power in combination with the power supply USB cable, or the AC adapter: B&W/Grayscale: 200 dpi/300 dpi: 15 ppm (Simplex), 30 ipm (Duplex) Colour: 200 dpi: 10 ppm (Simplex), 20 ipm (Duplex) 300 dpi: 6 ppm (Simplex), 12 ipm (Duplex)
Interface
Hi-Speed USB 2.0 (USB 3.0 bus power also supported)
Scanner Driver / Software
For Windows: ISIS/TWAIN Driver, Capture on Touch, Capture on Touch Lite (Built-in), PaperPort, Presto! BizCard, Evernote3 for Mac OS X3: TWAIN Driver, Capture on Touch, Capture on Touch Lite (Built-in), Presto! Page Manager, Presto! BizCard, Evernote3
Power requirements
With USB 2.0 bus power: 0.5 A (communication cable only), 1.0 A (in combination with the power supply USB cable) With USB 3.02 bus power: 0.9 A With optional AC Adapter: DC6V, 0.8 A
Power consumption
USB cable only: 2.5 W (USB 2.0), 4.5 W (USB 3.02) or less USB cable and power supply USB cable: 5.0 W (USB 2.0), 7.0 W (USB 3.02) or less Sleep Mode: 1.5 W or less Power OFF: 0.1 W or less
Operating environment
Temperature: 10°C to 32.5°C (50°F to 90.5°F) Humidity: 25 to 80% RH
Dimensions (W x D x H)
Feed Tray Closed: 285 x 95 x 40 mm (11.2 x 3.8 x 1.6”) Feed Tray Open: 285 x 257 x 174 mm (11.2 x 10.1 x 6.9”)
Weight
Approx. 1.0 kg (2.2 lbs)
Options / consumables
AC Adapter, Carrying Case, USB Cable, WU10, Separation Pad, Feed Roller
