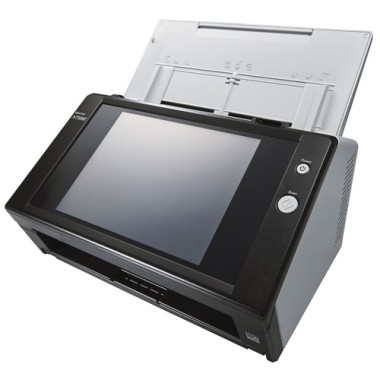

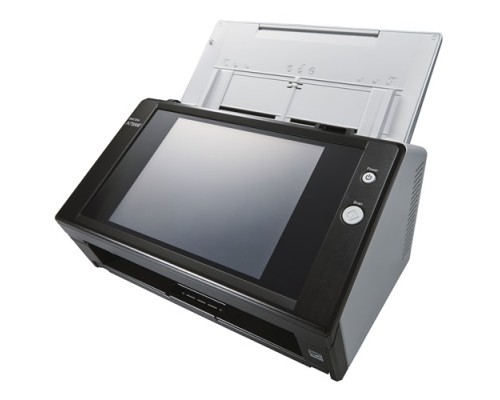

RICOH N7100E 25 PPM A4 DUPLEX NETWORK SCANNER
Fujitsu N7100E Network Scanner is a powerful, standalone duplex scanner designed to streamline office digitisation workflows without the need for a connected PC. Featuring an intuitive 8.4-inch touchscreen interface, a built-in keyboard, and network connectivity, it enables users to scan directly to email, network folders, FTP, SharePoint, or even fax servers—perfect for multi-user environments such as corporate offices, government agencies, and educational institutions.
With fast 25 ppm / 50 ipm duplex scanning, support for various media types (including plastic ID cards and long documents up to 3 metres), and a daily scan volume of 4,000 pages, it’s ideal for high-efficiency environments. User authentication via Active Directory or LDAP ensures data security, while features like multifeed detection, searchable PDF output, and automatic image enhancement help maintain accuracy and quality.
The N7100E supports multiple scan destinations, eliminating extra steps and saving time for users who need instant document sharing or storage. It's a smart solution for paperless offices, document-intensive workflows, and secure document distribution, all in a compact, energy-efficient design.
Product Name: Fujitsu N7100E
Scanner Type: Desktop ADF Scanner (Duplex, Network-ready)
Performance & Speed
Scanning Speed (A4 Portrait)
Simplex: 25 ppm (200/300 dpi)
Duplex: 50 ipm (200/300 dpi)
Optical Resolution: 600 dpi
Output Resolution: 150 / 200 / 300 / 600 dpi; Custom (50–600 dpi); Auto
Image Sensor: Dual CIS (Contact Image Sensor)
Light Source: 3-Color LED
Background Color: White
Media Handling
Document Size:
Maximum: 216 x 355.6 mm (8.5 x 14 in.)
Minimum: 50.8 x 50.8 mm (2 x 2 in.)
Long Page Mode: Up to 3,048 mm (120 in.)
Paper Weight:
Paper: 40 to 209 g/m² (11 to 56 lb)
Plastic Cards: Up to 0.76 mm thick
ADF Capacity: 50 sheets (80 g/m² / 20 lb)
Daily Duty Cycle: Up to 4,000 sheets/day
Multifeed Detection: Ultrasonic sensor
Output Formats & Functions
File Formats:
PDF (searchable, password-protected, compressed, marker index)
JPEG, TIFF (single/multipage), Reverse Page Order
Output Destinations:
Save to: Network Folder / SharePoint / FTP Server
Send via: Email / Print Server / Fax Server / Internet Fax
Authentication & Security
User Authentication:
Active Directory, Open LDAP (Solaris/Linux), Standalone
Folder Authentication:
Active Directory, Open LDAP
Connectivity & Interface
Network Interface:
10BASE-T / 100BASE-TX / 1000BASE-T
Supported Protocols:
TCP/IP (IPv4 & IPv6), DHCP, SMTP, SMB, LDAP/LDAPS, NTP, FTP/FTPS, HTTP/HTTPS
Display:
8.4" XGA (1024 x 768) TFT Color LCD
Touch Panel: Analog Resistive
On-Screen Software Keyboard
Power & Environmental
Power Requirements: AC 100–240 V ±10%
Power Consumption:
Operating: ≤38 W
Energy Saving Mode: ≤2 W
Power Off: ≤0.3 W
Operating Temperature: 5°C to 35°C
Humidity Range: 20–80% RH (non-condensing)
Environmental Standards: ENERGY STAR®, RoHS compliant
Physical Specifications
Dimensions (W x D x H): 300 x 232 x 172 mm (11.8 x 9.1 x 6.8 in.)
Weight: Approx. 6 kg (13 lb)
Included Accessories
AC Power Cable
AC Adapter
LAN Cable
Getting Started Guide
