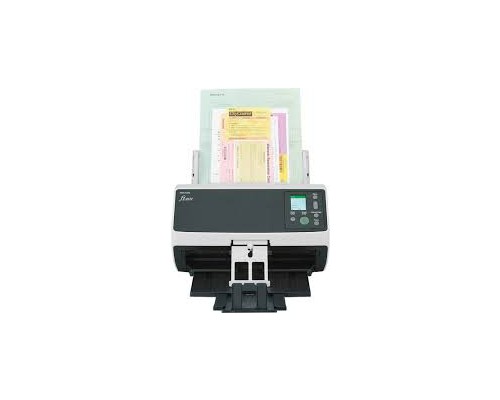

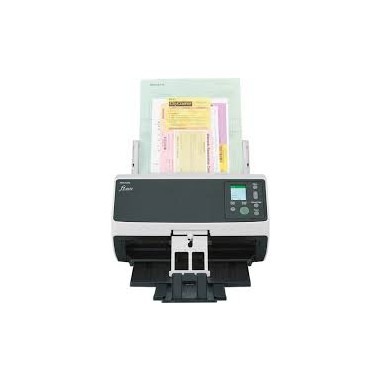

FUJITSU FI-8170 A4 70PPM USB 3.2 DUPLEX DOCUMENT SCANNER 1YR RTB
The fi-8000 series features intelligent new technologies that will revolutionize business scanning. Our ground-breaking Clear Image Capture produces image quality that surpasses other available technologies, resulting in industry-leading OCR accuracy rates. PaperStream IP drivers optimize image quality and file sizes for faster, lower cost operations.
Plus, the fi-8000 series can easily capture the widest range of document types – from 20gsm to 465gsm, cards or booklets up to 7mm thick. With 32 new patents, the innovations we have made to the world’s most trusted scanning solution deliver a product you can rely on, now and into the future with reduced power consumption and state-of-the-art Automatic Separation Control that consistently delivers the perfect feed.
Meanwhile, Intelligent Sonic Paper Protection (iSOP) and the world’s-first Image Monitoring technology combine for the safe capture and protection of passports, booklets or mixed batches even when labels or photos are attached. A 100 sheet ADF and up to 90 ppm duplex scanning speed combined with many marginal process gains mean the fi-8000 series delivers real-world productivity without equal. Overscan Control and enhanced multifeed detection prevent stoppages from misfeeds, jams or skews, while post-scan filing time is also reduced. And with no need to prepare different document types in separate batches, a fast start-up time and centralised remote scanner monitoring and management, users benefit from uninterrupted operation, maximum uptime and an unsurpassed user experience.
Scanner Type
ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed
(A4 Portrait)
(Color/Grayscale/Monochrome)
Simplex70 ppm (200/300 dpi) Duplex140 IPM (200/300 dpi)
Image Sensor Type
CIS x 2 (front x 1, back x 1)
Light Source
RGB LED x 2 (front x 1, back x 1)
Optical Resolution
600 dpi
Output Resolution
(Color / Grayscale / Monochrome)
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)*5
Output Format
Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors
White / Black (selectable)
Document Size
Maximum*6215.9 x 355.6 mm (8.5 x 14 in.) Minimum48 x 50 mm (1.9 x 2 in.) Long Page Scanning*76,096 mm (240 in.)
Paper Weight (Thickness)
Paper20 to 465 g/m² (5.3 to 124 lb) Booklet Less than 7 mm (0.276 in.)*9Plastic Card1.4 mm (0.055 in.) or less
ADF Capacity
100 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume
10,000 sheets
Multi feed Detection
Overlap detection (Ultrasonic sensor), Length detection
Paper Protection
Image monitoring, Sound detection (iSOP)*14
Interface USB 3.2 Gen1x1 / USB 2.0 / USB 1.1Ethernet10BASE-T, 100BASE-TX, 1000BASE-T
Power Requirements
AC 100V – 240V 50/60 Hz
Power Consumption
Operating Mode28 W or less / 17 W (Eco mode)Sleep Mode LAN: 2.0 W or less
USB: 1.4 W or less Auto Standby (Off) Mode0.2 W or less
Operating Environment
Temperature5 to 35 °C (41 to 95 °F)Relative Humidity15 to 80% (Non-condensing)
Environmental Compliance
ENERGY STAR®, RoHS
Dimensions (W x D x H)
300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.)
Weight
4 kg (8.8 lb)
Supported Operating System
Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, macOS*17, Linux (Ubuntu)
Included Software / Drivers
Paper Stream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver*18, Image Scanner Driver for macOS (ICA)*18*19, Image Scanner Driver for Linux (SANE)*18*19, Paper Stream Capture, Paper Stream Click Scan*19, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for Scan Snap™*19, Scanner Central Admin
Image Processing Functions
Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold
Included Items
ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
