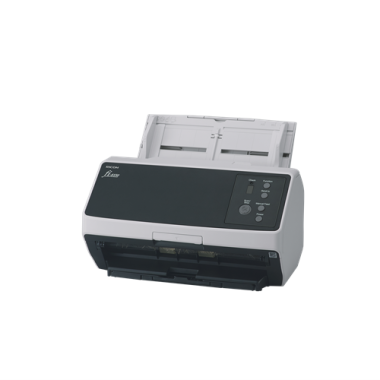

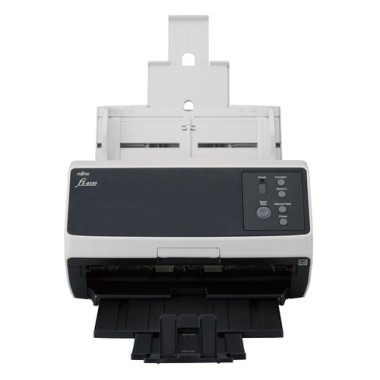

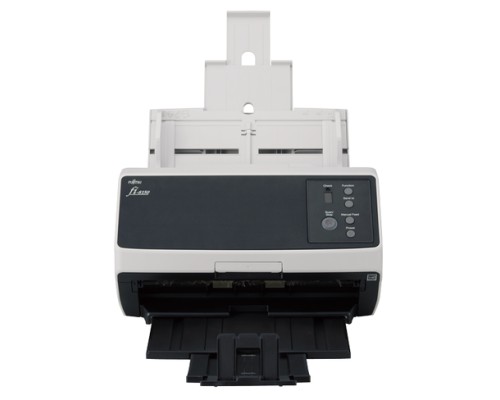

Fujitsu FI-8150 A4 40ppm Duplex Document Scanner

SPECIFICATIONS

Scan Speed

Simplex: 50 pages per minute (ppm) (single-sided scanning)

Duplex: 100 images per minute (ipm) (double-sided scanning)

A4-size, 300 dpi, both color and monochrome documents

Scanning Resolution

Optical Resolution: Up to 600 x 600 dpi

Interpolated Resolution: Up to 1200 x 1200 dpi

Paper Size

Maximum Paper Size: A4 (8.27 x 11.69 inches)

Minimum Paper Size: 50.8 x 50.8 mm (2 x 2 inches)

Supports: A4, A5, A6, B5, Letter, Legal, and custom paper sizes

Automatic Document Feeder (ADF) Capacity

Up to 80 sheets (based on 80 g/m² paper)

Paper Weight

ADF: Supports paper from 27 to 413 g/m² (supports both thick and thin paper)

Flatbed: Supports documents up to 3 mm thick

Document Handling

Duplex Scanning: Scans both sides of the document in a single pass.

Mixed Document Scanning: Can scan mixed-sized documents in the same batch.

Double Feed Detection: Detects when two pages are fed at once, helping to prevent document jams.

Ultrasonic Sensors: Ensure smooth paper feeding with minimal risk of document misfeeds.

Connectivity

USB 3.2 Gen 1 interface (for fast data transfer)

Network Interface: Optional network interface unit for shared use in a workgroup environment.

Advanced Image Processing Features

Automatic Color Detection: Automatically detects and adjusts color settings based on document content.

Automatic Image Rotation: Automatically rotates pages that are scanned upside down.

Blank Page Removal: Automatically detects and removes blank pages to save space.

Skew Correction: Automatically adjusts skewed pages for accurate scanning.

Moire Reduction: Reduces moiré patterns during scanning of images and printed content.

Noise Reduction: Removes noise from scanned images to improve quality.

Page Separation: Automatically detects and separates pages in mixed document batches.

Software Included

PaperStream IP: Image enhancement and scanning software that provides excellent color reproduction and sharpness.

PaperStream Capture: Helps manage scan jobs and workflows efficiently.

ABBYY FineReader Sprint: OCR (Optical Character Recognition) software for text recognition.

ScanSnap Manager: Easy-to-use scanning software for simplified operations.

TWAIN & ISIS Drivers: For compatibility with third-party document management systems.

Operating Systems Supported

Windows: Windows 7, 8, 8.1, 10, 11 (32/64-bit)

macOS: macOS 10.11 (El Capitan) or later

Linux: Supported through ISIS, TWAIN, or driver packages

Power Consumption

Operating Power Consumption: Approx. 40 W

Standby Power Consumption: Approx. 7 W

Sleep Mode Power Consumption: Approx. 0.5 W

Voltage: 100-240 V AC, 50/60 Hz (Auto Voltage Switching)

Dimensions

Width: 292 mm (11.5 inches)

Depth: 171 mm (6.7 inches)

Height: 169 mm (6.7 inches)

Weight: Approx. 3.5 kg (7.7 lbs)

Other Features

Compact Design: Space-efficient, ideal for desktop use.

User-Friendly Operation: Includes a simple control panel and clear indicator lights for easy operation.

Energy Efficient: Complies with ENERGY STAR® standards for energy-efficient operation.

Maintenance: Designed for easy maintenance with user-replaceable parts (e.g., rollers).

30,000-page daily duty cycle (recommended for consistent performance in high-volume environments).

Environmental Certifications

ENERGY STAR® Certified

RoHS (Restriction of Hazardous Substances) Compliant

WEEE (Waste Electrical and Electronic Equipment) Compliant

CE Mark (Conformité Européenne)

Warranty

Standard Warranty: 1-year limited warranty, with optional extended warranty available through Fujitsu’s service plans.

Summary

The Fujitsu fi-8150 is an efficient and reliable A4 duplex document scanner designed for small to medium-sized businesses and workgroups. With scanning speeds of up to 50 ppm and 100 ipm, it delivers fast, high-quality scanning for various document types. It includes advanced features such as automatic image rotation, blank page removal, and double-feed detection, ensuring smooth and error-free document management. The fi-8150 is compact, energy-efficient, and suitable for a wide range of document workflows, making it an ideal choice for offices looking for a versatile document scanning solution.
