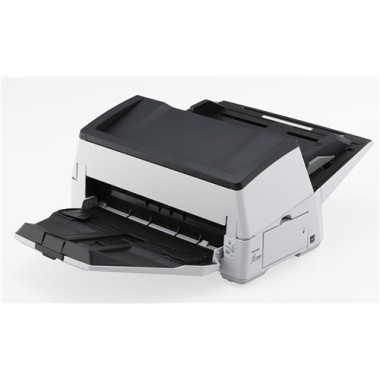

FUJITSU FI-7600 100PPM-300 SHEET ADF DUPLEX DOCUMENT SCANNER A3
The Fujitsu fi-7600 is a high-performance A3 duplex document scanner designed for heavy-duty scanning tasks. Key features include
- Scan Speed: 100 pages per minute (ppm) simplex, 200 images per minute (ipm) duplex.
- ADF Capacity: 300-sheet Automatic Document Feeder (ADF).
- Resolution: Up to 600 x 600 dpi optical resolution.
- Paper Handling: Supports A3 to A6 sizes, with paper weights from 27 to 413 g/m².
- Advanced Features: Duplex scanning, mixed-size document scanning, skew correction, blank page removal, double-feed detection, and barcode recognition.
- Software: Includes PaperStream Capture, ABBYY FineReader Sprint OCR, and TWAIN/ISIS drivers.
- Connectivity: USB 3.2 Gen 1, with optional network interface.
- Power Consumption: 45 W during operation, 8 W in standby.
- Dimensions: 424 mm (W) x 280 mm (D) x 220 mm (H), weighs 7.5 kg.
Ideal for high-volume, mixed-document workflows, the fi-7600 combines speed, reliability, and advanced scanning features for efficient document management.
SPECIFICATIONS
Scan Speed
Simplex: 100 pages per minute (ppm)
Duplex: 200 images per minute (ipm)
A4-size, 300 dpi for both color and black & white documents
Scanning Resolution
Optical Resolution: Up to 600 x 600 dpi
Interpolated Resolution: Up to 1200 x 1200 dpi
Paper Size
A3, A4, A5, A6, B5, B6, and custom sizes
Maximum Paper Size: A3 (11.7 x 16.5 inches)
Minimum Paper Size: 50.8 x 50.8 mm (2 x 2 inches)
ADF Capacity:
300 sheets (based on 80 g/m² paper)
Paper Weight:
ADF: Supports paper weights from 27 to 413 g/m² (including thick, thin, and embossed paper)
Flatbed: Supports 1.5 to 3 mm thick documents (e.g., books, magazines)
Document Types Supported:
Mixed Documents: Supports mixed-size document scanning (e.g., A3 to A6 in the same batch)
Card Scanning: Supports scanning of plastic cards (e.g., ID cards, insurance cards, etc.)
Scanning Method
Duplex Scanning: Scans both sides of the document in one pass.
Sheetfed and Flatbed Scanning (via optional flatbed accessory).
Connectivity
USB 3.2 Gen 1 (for fast data transfer)
Network Interface: Optional via network interface unit for shared use in workgroup environments (using a compatible network interface unit)
Advanced Features
Image Processing Features:
Skew Correction
Blank Page Removal
Text Orientation Detection
Automatic Color Detection
Automatic Cropping
Moire Detection
Noise Reduction
Double Feed Detection: Detects if two pages are fed at the same time.
Barcode Recognition: Built-in barcode recognition to streamline document management.
Paper Protection: Built-in ultrasonic sensors to avoid document misfeeds and damage.
Software Included
PaperStream Capture (for managing scan tasks and workflows)
PaperStream IP (image enhancement and processing)
ScanSnap (easy-to-use scanning software)
ABBYY FineReader Sprint (OCR software for text recognition)
TWAIN and ISIS Drivers (for third-party software compatibility)
Operating Systems Supported:
Windows: Windows 7, 8, 8.1, 10, and 11 (32/64-bit)
Mac OS: macOS 10.11 (El Capitan) or later
Linux: Supported through ISIS, TWAIN, or driver packages
Power Consumption
Operating Power Consumption: Approx. 45 W
Standby Power Consumption: Approx. 8 W
Sleep Mode Power Consumption: Approx. 0.5 W
Voltage: 100-240 V AC, 50/60 Hz (Auto Voltage Switching)
Dimensions
Scanner:
Width: 424 mm (16.7 inches)
Depth: 280 mm (11.0 inches)
Height: 220 mm (8.7 inches)
Weight: Approx. 7.5 kg (16.5 lbs)
Other Features
Automatic Document Feeder (ADF): 300-sheet capacity (for large volume scanning)
Flatbed Option: Available with an optional flatbed unit (for bound documents, books, and fragile materials).
Automatic Rotation: Automatically rotates images to the correct orientation.
Energy Star Certified: Meets energy-efficient standards.
Maintenance: Fujitsu provides a 30,000-page daily duty cycle for reliability and heavy use.
Environmental Certifications
ENERGY STAR® Certified
RoHS (Restriction of Hazardous Substances) Compliant
WEEE (Waste Electrical and Electronic Equipment) Compliant
CE Mark (Conformité Européenne)
Warranty
Standard Warranty: 1-year limited warranty, with optional extended warranty available through Fujitsu’s service plans.
Summary
The Fujitsu fi-7600 is designed for organizations that need fast, reliable, and high-volume scanning capabilities. With a 100 ppm scanning speed, a 300-sheet ADF, and robust paper handling, it excels in environments requiring efficient digitization of large volumes of documents. The duplex scanning and advanced image enhancement features make it a versatile solution for scanning mixed documents, legal papers, cards, and even thick documents with ease.
This scanner is ideal for high-volume document workflows, improving efficiency and accuracy in document management and archiving processes
