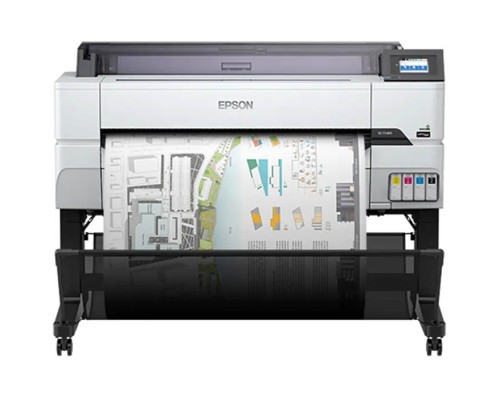

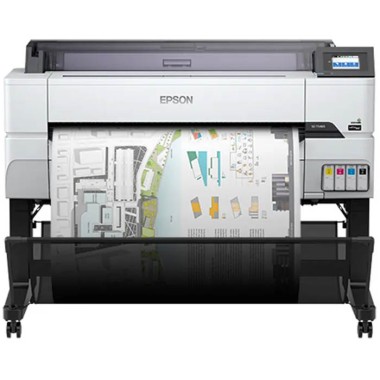

EPSON T5160M SURECOLOR 36 INCH LARGE FORMAT PRINTER
The Epson printer offers exceptional large-format printing capabilities with a max print width of 36 inches (914mm) and a maximum resolution of 2400 x 1200 dpi for high-quality results. Featuring PrecisionCore TFP print head technology, it delivers fast A1 print speeds in just 31 seconds and supports Aqueous ink system using Epson Ultrachrome XD2 for vibrant and accurate colors. Scan technology includes a 600dpi CIS scanner, making it perfect for high-quality scanning and copying tasks. The printer supports a variety of media types, including plain paper, glossy paper, and film, and handles sheet and roll formats for versatile media support.
Size and Print Technology
Max Print Width: 36 inches (914mm).
Print Head: PrecisionCore TFP with VSDT and Auto Head Alignment for high-quality printing.
Print Modes: Uni-directional and Bi-directional.
Nozzle Configuration: 800 nozzles per color.
Maximum Resolution: 2400 x 1200 dpi for detailed prints.
Minimum Ink Droplet Size: 4.0pl for precise ink application.
Scan Technology
Technology: Contact Image Sensor (CIS) for efficient scanning.
Light Source: Single light source for optimal scanning.
Feed System: Sheet pass-through scanning system.
Maximum Scan Resolution: 600dpi for sharp and clear scans.
Ink System
Family: Epson Ultrachrome XD2 for high-quality pigment-based prints.
Type: All-Pigment Aqueous ink system.
Color: Cyan (C), Magenta (M), Yellow (Y), and Black (K).
Cartridges: CMY (26/50ml), Black (50/80ml).
Performance
CAD A1 Print Speed: 31 seconds.
Max Scan Speed:
Colour: 3.81 cm/s (1.5 inches per second).
Mono: 11.43 cm/s (4.5 inches per second).
Max Copy Speed:
Color: 77 seconds per A1 sheet.
Mono: 60 seconds per A1 sheet.
Media Support
Roll Format:
Single roll top-loaded spindle.
Core size: 2 inches.
Media thickness: 0.05-0.21mm.
Media width: 329-910mm.
Max roll diameter: 119mm.
Max weight: 3kg.
Sheet Format:
Supports A4-A0/B1 single sheets.
Automatic Sheet Feeder (ASF): Holds up to 50 sheets (A4/A3).
Media thickness: 0.12-0.27mm.
Auto Cutter: Inbuilt rotary-type cutter for clean cuts.
Manual Double-Sided Printing: Refer to the user guide or contact Epson for media compatibility.
Scan & Copy Features
Media Handling: Single Sheet Front Loading.
Media Types: Plain, Matte, Recycled, Glossy paper, Film, Newspaper, and Tracing Paper.
Copy Function: Scalable from 1-99 sheets with 25-400% scaling and Auto Fit.
Scan To Formats: JPEG, PDF, and TIFF.
Operational Specifications
Control Panel: 4.3-inch Color LCD touch screen.
Connectivity: USB 3.0, Ethernet, WiFi, WiFi Direct, AirPrint.
Compatibility: Works with Windows (10/8.1/8/7/Vista/XP) and Mac OS (10.6.8 or later).
Memory: 1GB RAM.
Physical Dimensions
Desktop Setup: 1268mm (W) x 230mm (D) x 505mm (H), 33kg.
Floor Standing Setup: 1268mm (W) x 696mm (D) x 974mm (H), 54.8kg.
Environmental Requirements
Operational Temperature: 10°C to 35°C.
Operational Humidity: 20-80%.
Power Supply: 100-240V AC, 50/60 Hz.
Power Consumption: 28W (Operating), 8W (Standby), 1.6W (Sleep).
Operating Noise: 49dB.
What’s in the Box
Printer, Power Cord, 26ml CMY/50ml Black Ink set, 1 x Maintenance Tank.
Setup Guide, Warranty Info, Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Windows only), user & Network manuals on CD.
An additional Stand is included with floor-standing configurations.
OEM: C11CJ54401.
This Epson printer is ideal for high-volume large-format printing, scanning, and copying tasks, offering exceptional speed, quality, and flexibility for professional users.
