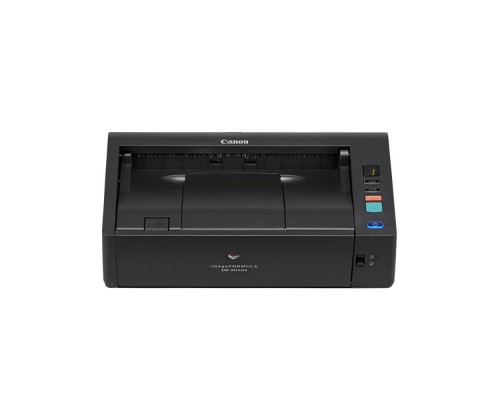

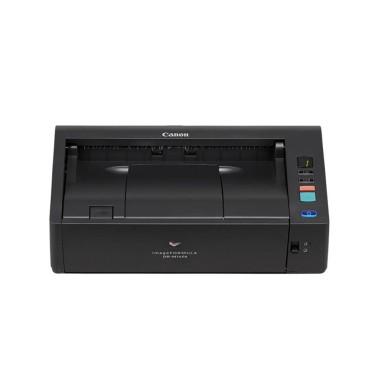

imageFORMULA DR-M140 II A4 OFFICE DOCUMENT SCANNER
Canon DR-M140 II Desktop Sheet-Fed Scanner is a powerful and compact document scanner designed to streamline high-volume scanning in offices, government agencies, healthcare, and financial institutions. With high-speed duplex scanning of up to 40 pages per minute and 80 images per minute, it’s built to handle demanding workflows while saving valuable desk space.
Equipped with an 80-sheet automatic document feeder (ADF), this scanner supports a wide range of document types—from plain paper and business cards to embossed plastic cards and passports (with optional flatbed unit). Its contact image sensor (CIS) technology ensures crisp and accurate scans at up to 600 dpi optical resolution, while built-in image enhancement features such as Advanced Text Enhancement, Active Thresholding, and Auto Size Detection deliver clean, legible results even from mixed or poor-quality originals.
The DR-M140 II supports USB 2.0 connectivity, is compatible with Windows and Mac, and offers seamless integration with existing document management systems via ISIS/TWAIN drivers. With low power consumption, Folio scanning, and double feed release, it offers intelligent features for productive, error-free operation.
Whether you're scanning contracts, receipts, ID cards, or medical forms, this high-performance sheetfed scanner ensures maximum efficiency with minimal footprint—ideal for businesses that demand reliable, high-speed scanning in a compact form.
Model Name: Canon imageFORMULA DR-M140 II
Scanner Type: Desktop Sheet-Fed Scanner
Market Category: Business Document Scanner – Medium Volume
Scanning Technology
Contact Image Sensor (CIS)
RGB LED Light Source
Duplex scanning support (both sides in one pass)
Document Size Support:
Width: 50.8 mm – 55 mm
Length: 85 mm – 91 mm
Long Document Mode: Supports documents up to 5,588 mm (via long document setting)
Supported Media Types:
Plain Paper
Business Cards
Plastic Cards (embossed and non-embossed)
Passports (via optional flatbed unit)
Document Thickness & Weight:
Plain Paper (U-turn Path): 27 – 128 g/m² (0.04 – 0.15 mm)
Plain Paper (Straight Path): 27 – 255 g/m² (0.04 – 0.30 mm)
Business Cards: ≤ 0.45 mm / up to 380 g/m² (straight path, vertical)
Plastic Cards: ≤ 0.76 mm (embossed ≤ 1.4 mm)
Passports: Up to 4 mm thick (via optional flatbed unit)
Feeder Capacity:
80 sheets (up to 10 mm total thickness)
Performance
Optical Resolution:
600 dpi
Output Resolutions:
100 / 150 / 200 / 240 / 300 / 400 / 600 / 1200 dpi
Image Output Modes:
Black & White
Error Diffusion
256-level Greyscale
24-bit Colour
Active Threshold
Advanced Text Enhancement I & II
Scanning Speeds (A4, Portrait):
Colour / Greyscale / B&W:
200/300 dpi: 40 ppm (Simplex), 80 ipm (Duplex)
Connectivity & Interface
USB 2.0 High-Speed
Compatible with Windows and macOS via TWAIN/ISIS drivers
Optional Flatbed Scanner connectivity
Software & Compatibility
Drivers & Utilities:
TWAIN / ISIS Drivers
Canon CaptureOnTouch Software
Windows & Mac Compatibility
Additional Features:
Folio Mode
Double Feed Detection & Release
Auto Page Size Detection
Background Smoothing
Text Enhancement
Skip Blank Page
Mechanical & Power
Dimensions (WxDxH):
313 mm x 181 mm x 93 mm (Trays closed)
Weight:
Approx. 2.6 kg (without AC adapter)
Power Requirements:
AC 100 – 240 V (50/60Hz)
Power Consumption:
Operating: Max. 24.5 W
Sleep Mode: Max. 1.6 W
Power OFF: Max. 0.1 W
Environmental Conditions
Operating Temperature: 10°C – 32.5°C
Operating Humidity: 20% – 80% RH
Environmental Compliance: RoHS, ENERGY STAR®
Consumables & Accessories
Consumables:
Exchange Roller Kit
Optional Accessories:
Flatbed Scanner Unit
Carrier Sheets for A4 and Passport
