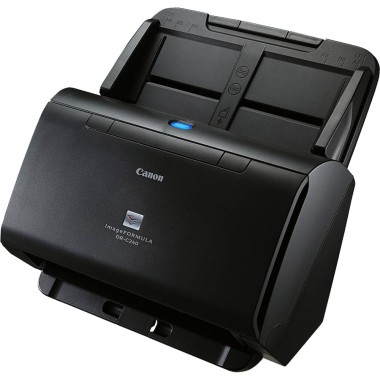

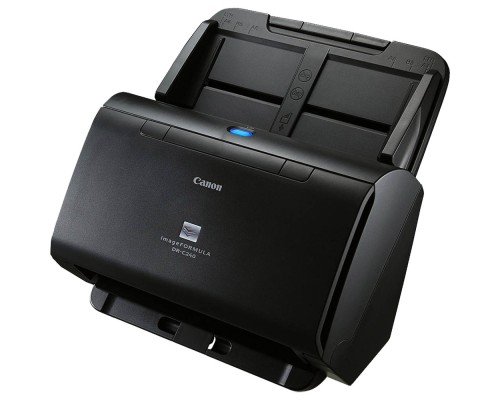

CANON imageFORMULA DR-C240 A3 OFFICE DOCUMENT SCANNER
Canon DRC-240 Desktop Sheet-Fed Scanner is engineered for professionals who demand fast, accurate, and versatile document scanning in high-volume environments. Designed with a CMOS CIS sensor and RGB LED light source, this scanner delivers 600 dpi optical resolution and supports multiple output resolutions up to 600 x 600 dpi, ensuring every scan is sharp and true to the original.
With impressive scanning speeds—up to 45ppm (pages per minute) in monochrome and 30ppm in color—and 90ipm duplex scanning, this device significantly boosts productivity in offices, legal departments, financial institutions, and healthcare settings. It can handle a variety of media, including business cards, plastic ID cards, and thick passports (up to 4 mm), thanks to its adaptable document feeder and retard roller paper separation technology.
Usability is further enhanced with advanced features like automatic page size detection, color dropout, background smoothing, auto resolution, and double feed detection via ultrasonic sensor. This ensures precise, consistent results even when dealing with mixed or fragile documents.
Equipped with a 60-sheet feeder and a robust daily duty cycle of 4,000 scans, the scanner is built for durability and long-term use. It is also ENERGY STAR and RoHS compliant, supporting sustainability in the workplace.
Included TWAIN/ISIS drivers and bundled software such as Kofax Power PDF and CaptureOnTouch provide seamless integration with Windows environments, while optional accessories like a flatbed scanner unit and barcode module expand functionality even further
Type: Desktop sheet-fed scanner
Scanning Sensor Unit: CMOS CIS, 1-Line Sensor
Optical Resolution: 600 dpi
Light Source: RGB LED
Scanning Sides: Simplex / Duplex (Front & Back)
Interface: High-Speed USB 2.0
Dimensions & Weight
Trays Closed: 291 mm (W) x 175 mm (D) x 182 mm (H)
Trays Open: 291 mm (W) x 603 mm (D) x 363 mm (H)
Weight: Approx. 3 kg
Power Requirements & Consumption
Power Input: AC 100 – 240V, 50/60 Hz
Operation: Max. 22W
Sleep Mode: Max. 1.7W
Power OFF: Max. 0.5W
Operating Environment
Temperature: 10°C – 32.5°C
Humidity: 20% – 80% RH
Environmental Compliance
Certifications: RoHS, ENERGY STAR
Scanning Performance
Black & White Scanning:
200 dpi: 45 ppm (Simplex) / 90 ipm (Duplex)
300 dpi: 45 ppm (Simplex) / 90 ipm (Duplex)
Colour Scanning:
200 dpi: 30 ppm (Simplex) / 60 ipm (Duplex)
300 dpi: 20 ppm (Simplex) / 40 ipm (Duplex)
Document Handling
Document Size:
Plain Paper: Width 50.8 – 216 mm; Length 54 – 356 mm
Long Document Mode: Up to 3,000 mm
Business Card: 50.8 x 85 mm or larger
Plastic Card: 53.9 x 85.5 mm (Embossed up to 1.4 mm)
Passport: Up to 4 mm (via carrier sheet)
Document Thickness:
Plain Paper: 27 – 209 g/m² (0.06 – 0.25 mm)
Business Card: < 0.45 mm
Plastic Card: 0.76 mm
Feeding Capacity: Up to 60 sheets (6 mm stack)
Separation Method: Retard Roller
Scan Output
Resolutions: 150, 200, 240, 300, 400, 600 dpi
Modes:
Black & White
Error Diffusion
Advanced Text Enhancement I & II
8-bit Grayscale (256 Levels)
24-bit Colour
Daily Duty Cycle: Approx. 4,000 scans/day
Advanced Features
Auto Page Size Detection
Deskew & Auto Cropping
3D Colour Correction
RGB Colour Dropout / Enhancement
Shadow Cropping
Background Smoothing / Removal
Auto Resolution Setting
Folio Mode
Double Feed Detection (Ultrasonic Sensor + Length Detection)
MultiStream Support
Moiré Reduction
Skip Blank Page
Batch Separation (White Sheet or Patch Code)
Software Compatibility
Drivers: ISIS / TWAIN
Supported OS:
Windows Vista SP2, 7 SP1, 8, 8.1
Server 2008 R2 SP1, Server 2012 R2
Software:
CaptureOnTouch
Kofax Power PDF
EMC Captiva Cloud Runtime Controls
Optional Accessories & Consumables
Flatbed Scanner Unit 101 / 201
Barcode Module
2D Code Module
Exchange Roller Kit
Carrier Sheet (A4 & Passport)
