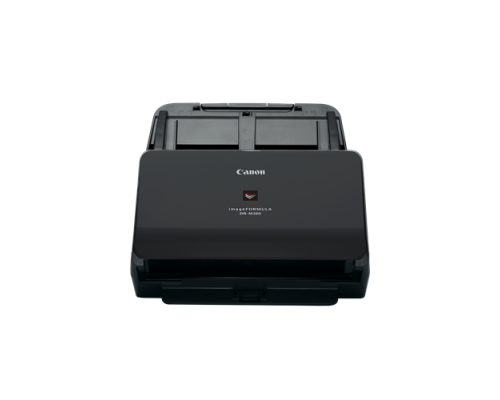

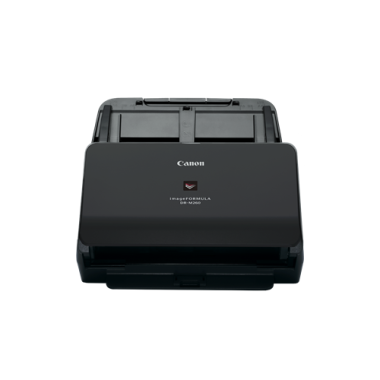

DR-M260 60PPM USB A4 SCANNER
A scanner that makes light of high-volume complex image processing
Your Canon imageFORMULA DR-M260 is an affordable desktop scanner for the digital transformation of your business. Its sophisticated OCR technology delivers an immediate return on investment by minimising hours your admins spend on manual data entry, and by improving accuracy. This compact scanner easily manages complex image processing on different sized documents, whether scanning plastic, paper or card. At speeds of 120 A4 sides in 200dpi per minute, and in a single-pass operation your admin will quickly work through high volumes of data. A heavy-duty auto document feeder holds up to 80 sheets of paper, and large feed rollers work independently to minimise paper skewing for optimised scanning. Backed by Canon for maximum productivity.
-
Small in size, big in output
With its small footprint, your Canon DR-M260 desktop scanner won't demand much space, however it will amaze with its huge capacity for volume.
-
A speed that’s guaranteed to surprise
At speeds of up to 120 A4 sides scanned in 200dpi per minute and in a single-pass, your DR-M260 will have your office under control in no time.
Type Desktop sheet-fed scanner
Scanning Document Size Plain Paper: Width: 50 mm to 216 mm (1.97” to 8.5”)
Length: 54 mm to 356 mm (2.13” to 14”)
(You can scan documents up to 5,588 mm (220'')
long by setting the scanner to the Long Document mode.)
Business card: Width: 50 mm x 85 mm (2'' to 3.35'') or larger
Length: 85 mm to 91 mm (3.35” to 3.58”)
Card (ISO/IEC compliant): 54 mm x 86 mm (2.1” x 3.4”)
Document Thickness and
Weight
Plain Paper: Page separation: 0.04 mm to 0.49 mm
(0.0016'' to 0.0193”), 27 413 g/m2 (7 to 110 lb bond)
Bypass: 0.04 mm to 0.49 mm (0.0016'' to 0.0193'')
27 to 413 g/m2 (7 to 110 lb bond)
Business card: 380 g/m2 (80 lb bond) 0.45 mm (0.0177'')
or smaller
Card (ISO/IEC compliant): 0.76 mm (0.03”) or less
Up to 1.4 mm (0.055”) for embossed cards
Document Feeding Method Automatic
Scanning Sensor Contact image sensor
Light Source LED
Scanning Side Simplex / Duplex
Scanning Modes
Advanced Text Enhancement, Advanced Text Enhancement II,
24-bit Colour
Scanning Resolution 150 x 150 dpi / 200 x 200 dpi / 240 x 240 dpi / 300 x 300 dpi
/ 400 x 400 dpi / 600 x 600 dpi
Scanning Speed1, 2 B&W / Grayscale: 200 dpi/300 dpi: 60 ppm (Simplex),
120 ipm (Duplex)
Colour: 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
300 dpi: 50 ppm (Simplex), 100 ipm (Duplex)
Interface USB3.1 Gen 1
Scanner Driver / Software Windows: ISIS/TWAIN Driver, CaptureOnTouch,
CapturePerfect, Kofax VirtualReScan Basic
Other functions Folio scanning, Double feed detection release,
Separation retry
External Dimensions
(W x D x H)
Weight Approximately 3.4 kg (7.50 lb) (without AC adapter)
Power Supply DC24V 1.0A (using AC adapter)
Power Consumption Scanning: 23 W or less
In the sleep mode: 1.4 W or less
With power switch OFF: 0.1 W or less
Noise Not more than 45 dB
Operating Environment Temperature: 10°C to 32.5°C (50°F to 90.5°F)
Humidity: 20% to 80% RH
Options/Consumables Flatbed Scanner Unit 101/201, WU10, Barcode Module,
2D code Module, Exchange Roller Kit (feed roller and
retard roller)
