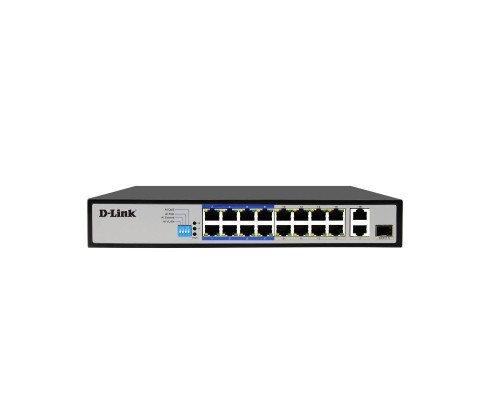

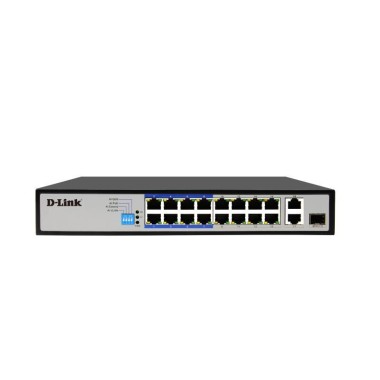

D-Link 18-Port PoE Switch with 16 PoE Ports (8 Long Reach 250m)
Fast Ethernet PoE switch features 16 PoE ports and 18 total LAN ports, delivering PoE+ power with Long Reach capability up to 250 m, ideal for IP surveillance, wireless access points, and VoIP networks. Designed with a metal chassis and rackmountable 1U form factor, it offers a compact design for home and office use, with plug-and-play installation for quick, simple setup.
Key Features
Fast Ethernet switch – 10/100 Mbps connectivity
PoE+ ports – 16 ports with up to 30 W per port
Long Reach PoE – 8 ports capable of up to 250 m
Rackmountable metal chassis – 19-inch compatible
Fanless design – Silent operation
Built-in power supply – Internal PSU
Compact form factor – 285 × 180 × 44 mm
Plug-and-play – Quick setup for home/office deployments
Warranty – 3-Year Limited Warranty
Applications: Perfect for small office and home office (SOHO) networks, IP CCTV / surveillance systems, wireless AP deployment, and VoIP telephony.
Product Overview
| Feature | Specification |
|---|---|
| Port Type | Fast Ethernet (10/100 Mbps) |
| Number of Ports | 16–24 (LAN Ports: 18) |
| PoE Ports | 16 Ports with IEEE 802.3af/at (PoE+) support |
| PoE Type | Standard PoE with Long Reach capability up to 250 m |
| Design / Form Factor | Metal chassis, rackmountable |
| Housing Material | Metal |
| Power Supply | Internal AC PSU |
| Rackmountable | Yes (19-inch compatible) |
| Compact Design | Suitable for home and office deployments |
| Plug-and-Play Installation | Quick and simple setup |
| Dimensions (WxDxH) | 285 × 180 × 44 mm |
| Warranty | 3-Year Limited Warranty |
Port & Connectivity Features
Total LAN Ports: 18
PoE Ports: 16, supporting up to 30 W per port
Long Reach PoE: 8 ports capable of powering devices up to 250 m
Uplink Ports: 2 x Fast Ethernet (optional uplink)
Auto-MDI/MDI-X: Yes, on all copper ports
Switching Method: Store-and-forward
PoE & Long Reach Capabilities
| Feature | Specification |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| Maximum PoE per Port | 30 W |
| Total PoE Power Budget | 200–250 W (dependent on model) |
| Long Reach PoE | Up to 250 m on designated ports |
| Smart PoE Functions | Extend mode, VLAN isolation, QoS prioritization, PoE reset |
| Surge Protection | Integrated 6 kV lightning/transient protection |
Hardware & Management Features
| Feature | Specification |
|---|---|
| Management Type | Unmanaged, Plug-and-Play with hardware DIP-switch options |
| QoS / Traffic Prioritization | Yes – Hardware based |
| Port Isolation / VLAN | Supported via DIP switch |
| PoE Device Monitoring / Reset | Supported |
| Diagnostic LEDs | Power, Link/Activity per port |
| Cooling | Fanless design for silent operation |
Performance
| Feature | Specification |
|---|---|
| Switching Method | Store-and-forward |
| Forwarding Rate | ~148,800 pps (100 Mbps) |
| Latency | Low, hardware-based |
Physical & Environmental
| Feature | Specification |
|---|---|
| Form Factor | Desktop / Rackmountable (1U) |
| Cooling | Fanless (silent operation) |
| Built-in PSU | Yes |
| Rackmountable | 19-inch compatible |
| Dimensions (WxDxH) | 285 × 180 × 44 mm |
| Weight | ~2.5–3 kg |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 0–95% RH non-condensing |
Key Applications
Small office and home office (SOHO) PoE networks
IP CCTV / Surveillance systems up to 250 m cable length
Wireless Access Point deployment
VoIP / SIP phone systems
Compact network edge PoE distribution
Compliance & Standards
PoE: IEEE 802.3af / 802.3at
Ethernet: IEEE 802.3 / 802.3u (10/100 Mbps)
Surge protection: 6 kV
Safety & EMC: CE, FCC, RCM (typical for PoE switches)
