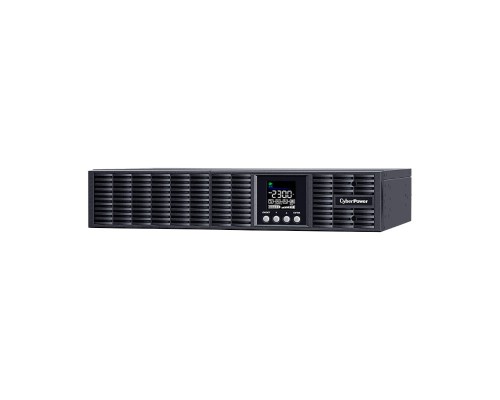

CYBERPOWER OLS 3000VA/2700W RACK/TOWER
This Online (Double Conversion) UPS delivers reliable, high-performance power protection for critical IT and networking infrastructure. Featuring Generator Compatibility and Zero Transfer Time, it ensures uninterrupted operation during power fluctuations. Advanced Smart Battery Management (SBM) and Extended Battery Module Auto-detection provide scalable runtime for enterprise environments.
The UPS includes Critical and Non-critical Load Outlets, Phone/Fax/Modem/DSL/Network Protection, and robust Surge and Spike Protection with EMI and RFI Filtration. Its ECO Mode and Variable Speed Fans enhance energy efficiency, while a Color LCD Panel provides intuitive system monitoring. Additional features include an Emergency Power Off (EPO) Port, Overload Protection, and support for SNMP/HTTP Remote Management (Optional) via PowerPanel Management Software.
With Rack/Tower Convertible Configurations, this UPS is ideal for data centers, server rooms, and enterprise IT environments requiring reliable, scalable, and energy-efficient power protection
General
Phase: Single Phase
Form Factor: Rackmount / Tower (Convertible)
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 95%
Generator Compatibility: Yes
Input
Nominal Input Voltage: 230 ± 10% Vac
Input Voltage Range: 190 – 300 Vac
Adjustable Voltage Range:
0–30% Load: 80 – 300 Vac
0–60% Load: 140 – 300 Vac
0–80% Load: 160 – 300 Vac
0–100% Load: 190 – 300 Vac
Input Frequency: 50 ± 10 Hz / 60 ± 10 Hz
Input Frequency Detection: Auto-sensing
Rated Input Current: 13 A
Input Power Factor: 0.99
Input Connector Type: IEC C20
Power Cord Length: 1.5 m
Output
Output Capacity: 2700 Watts
Output Power Factor: 0.9
On-Battery Waveform: Pure Sine Wave
On-Battery Voltage(s): 208 / 220 / 230 / 240 Vac ±1%
Output Voltage Setting: Configurable
On-Battery Frequency: 50 / 60 Hz ±0.5%
Output Frequency Setting: Configurable
ECO Mode Voltage Tolerance: ±15%
Protection
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload (Line Mode): 110–120% Load 1 min, >120% Load immediate
Overload (Battery Mode): 110–120% Load 10 sec, >120% Load immediate
Overload (Bypass Mode): >130% Load immediate
Crest Factor: 3:1
Harmonic Distortion: THD ≤3% (Linear), THD ≤5% (Non-linear)
Internal Bypass: Automatic Bypass, Manual Bypass
Outlets
Total Outlets: 9
Outlet Types: IEC C19 × 1, IEC C13 × 8
Battery & Surge Protected Outlets: 9
Critical Load (CL): 5
Non-Critical Load (NCL): 4
Typical Transfer Time: 0 ms
Battery System
Battery Type: Sealed Lead-Acid
Smart Battery Management (SBM): Yes
User-Replaceable: Yes (Qualified Personnel Only)
Hot-Swappable: N/A
Battery Cartridge Model: RBP0158
RBP Quantity: 1
Battery Quantity per RBP: 6
Battery Voltage per RBP: 72 V
Maximum Charging Current: 1.5 A
Compatible Extended Battery Module (EBM): BPSE72V40ART2U
EBM Auto-Detection: Yes
Max. EBM Quantity: 3
Runtime at Half Load: 13.8 min
Runtime at Full Load: 4.3 min
Typical Recharge Time: 4 hours
Start on Battery: Yes
Surge & Network Protection
Surge Suppression Rating: 388 Joules
EMI/RFI Filtration: Yes
Phone/Network Protection: RJ11/RJ45 combo (1-in, 1-out)
Monitoring & Management
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
LCD Setting & Control: Mode, Alarm, Input & Output, Battery Settings
HID-Compliant USB Port: 1
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cables Included: Power Cord ×2, USB Cable ×1
Power Management Software: PowerPanel Business (Recommended)
SNMP / HTTP Remote Monitoring: Supported via optional RMCARD205
Mechanical
Enclosure Construction: Metal
Rackmount Rails: Yes
Rackmount Ears: Yes
Dimensions (W × H × D): 438 × 88 × 610 mm
Weight: 26.7 kg
Certifications
CE
RCM
