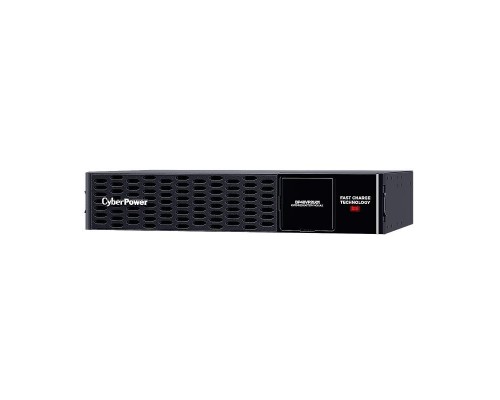

CYBERPOWER CP 48VDC 60A BATTERY PACK
CyberPower BP48VP2U01 External Battery Module (EBM) is designed to provide reliable UPS runtime expansion for mission-critical environments such as data centers, server rooms, and enterprise IT infrastructure. Delivering a nominal output voltage of 48 V DC and 60 A rated output current, the unit ensures stable and extended backup power during outages.
Equipped with 8 high-quality 12 V 7 Ah sealed lead-acid (SLA) batteries and 2 battery cartridges (RBP0128), this UPS battery pack supports scalable power protection. The module features a built-in charger with a typical recharge time of approximately 6 hours, allowing rapid power recovery and improved system availability.
The rackmount and tower-convertible design includes metal enclosure, rackmount rails, and ears, making it expansion-ready for growing power requirements. Certified to CE, FCC Class B, UL, RCM, and VCCI standards, this external UPS battery pack is ideal for extending backup runtime in enterprise IT, network equipment, and industrial backup power applications.
Product Type: External Battery Module (EBM)
Battery Cartridge Model: RBP0128
Application: UPS Runtime Expansion
Form Factor: Rackmount / Tower
Enclosure: Metal
Certifications: CE, FCC Class B, UL, RCM, VCCI
Electrical Specifications
Nominal Output Voltage: 48 VDC
Rated Output Current: 60 A
Battery Type: Sealed Lead-Acid (SLA)
Battery Quantity: 8 pcs
Single Battery Voltage: 12 V
Single Battery Capacity: 7 Ah
Total Battery Capacity: 48 V / 7 Ah
Battery & Charging
Built-in Charger: Yes
Recharge Method: Internal charger
Typical Recharge Time: Approx. 6 hours
Expansion Ready: Yes
Battery Cartridge Quantity: 2 pcs
Mechanical Specifications
Form Factor: Rackmount / Tower
Rackmount Rail Kit: Included
Rackmount Ears: Included
Dimensions (W × H × D): 433 × 86.5 × 412 mm
Weight: 25.3 kg
Physical & Environmental
Enclosure Construction: Metal housing
Installation Type: Rackmount or tower placement
Typical Applications
UPS runtime extension for data centers, server rooms, and enterprise IT infrastructure
Backup power expansion for network equipment, industrial systems, and mission-critical applications
