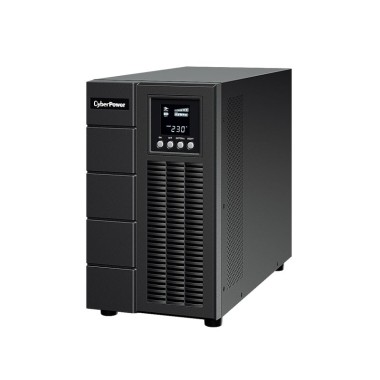

CP 3000VA/2700W Tower UPS

SPECIFICATIONS

• GENERAL

• Phase: Single Phase

• Form Factor: Tower

• UPS Topology: Online Double Conversion

• Energy Saving Technology: Online ECO Mode Efficiency greater than 95%

• Active PFC Compatibility: Yes

• INPUT

• Generator Compatibility: Yes

• Nominal Input Voltage (Vac): 230 +- 10%

• Input Voltage Range (Vac): 190 to 300

• Adjustable Voltage Range (Vac): 0 to 50% Load for 110 to 300 Vac, 0 to 60% Load for 140 to 300 Vac, 0 to 80% Load for 160 to 300 Vac, 0 to 100% Load for 190 to 300 Vac

• Input Frequency (Hz): 50 +- 10, 60 +- 10

• Input Frequency Detection: Auto-sensing

• Rated Input Current (A): 13.04

• Input Power Factor: 0.98

• Input Connector Type: IEC C20

• Detachable Power Cord Plug Type: AU x 1

• Power Cord Length: 1.8m

• OUTPUT

• Capacity (VA): 3000

• Capacity (Watts): 2700

• On Battery Waveform: Pure Sine Wave

• On Battery Voltage(s) (Vac): 208 +- 1%, 220 +- 1%, 230 +- 1%, 240 +- 1%

• Output Voltage Setting: Configurable

• On Battery Frequency (Hz): 50 +- 0.5%, 60 +- 0.5%

• Output Frequency Setting: Configurable

• Power Factor: 0.9

• ECO Mode Voltage Tolerance: +- 15 %

• Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse

• Overload Protection (Line Mode): 110 to 120% Load for 1 min, greater than 120% Load Immediately

• Overload Protection (Battery Mode): 110 to 120% Load for 10 sec, greater than 120% Load Immediately

• Overload Protection (Bypass Mode): greater than 130% Load Immediately

• Crest Factor: 3:1

• Harmonic Distortion (Linear Load): THD less than 3%

• Harmonic Distortion (Non-linear Load): THD less than 5%

• Internal Bypass: Automatic Bypass, Manual Bypass

• Outlet(s) - Total: 6

• Outlet Type: IEC C19 x 1

• Hardwire Terminal Block x 1: IEC C13 x 4

• Outlet(s) - Battery and Surge Protected: 5

• Typical Transfer Time (ms): 0

• BATTERY

• Runtime at Half Load (min): 14

• Runtime at Full Load (min): 4

• Typical Recharge Time (Hours): 5

• Maximum Charging Current (A): 1

• Start On Battery: Yes

• Smart Battery Management (SBM): Yes

• User-replaceable: No

• Battery Type: Sealed Lead-acid

• Single Battery Capacity (AH): 12 V 9 AH

• Compatible Extended Battery Module (EBM): BPSE72V45A

• Max. EBM Quantity (pcs): 3

• SURGE PROTECTION and FILTERING

• Surge Suppression (Joules): 440

• EMI/RFI Filtration: Yes

• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out

• MANAGEMENT and COMMUNICATIONS

• LCD Panel: Yes

• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault and Warning, Other Information, Event and Log

• LCD Setting and Control: Mode Setting, Alarm Setting, Input and Output, Battery Setting

• HID Compliant USB Port(s): 1

• Emergency Power Off (EPO) Port: Yes

• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

• Management Cable (pcs): Power Cord x2, USB Cable x1, Phone Line x1

• Power Management Software: PowerPanel Business (Recommended)

• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205

• PHYSICAL

• Enclosure Construction: Metal

• Colour: Black

• Physical Size - UPS Module: 196(w) x 337(h) x 416(d)mm

• Weight: 28.2kg

• Shipping Dimensions: 295(w) x 458(h) x 519(d)mm

• Weight: 30.4kg

• ENVIRONMENTAL

• Operating Temperature: 0 to 40C

• Operating Relative Humidity (Non-condensing): 20 to 90 %RH

• Operating Elevation: 0 to 1,500 meters

• Storage Temperature: -20 to 50C

• Storage Relative Humidity (Non-condensing): 10 to 90 %RH

• Storage Elevation: 0 to 1,500 meters

• Online Thermal Dissipation (BTU/hr): 1126

• Audible Noise at 1.5M from Surface of Unit (dBA): 45

• CERTIFICATIONS

• Certifications: CE, RCM

• RoHS: Yes

• WARRANTY

• Product Warranty Period: 2 years

• Battery Warranty Period: 2 years

• OEM: OLS3000E
