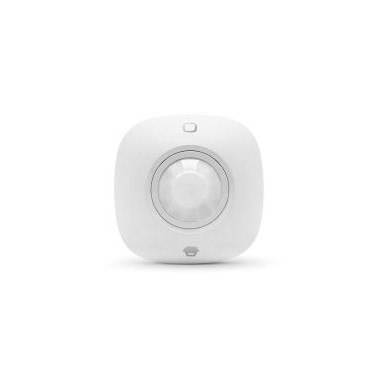

Chuango Motion Detector Pir Ceiling Mounted White

With automatic temperature compensation and anti-draft technology, the sensor detects for tiny variations in the environment caused by human body movements and effectively minimizes false alarms

• Easy to set up on a ceiling, it works well in banks, warehouses and all family settings, with a 360-degree effective range

• How it works- The detector works based on detecting human body's infrared spectrum. When human move within the scope, the detector receives the signal and inputs it into microprocessor after magnification. Microprocessor continues to sample infrared signal and send wireless signal to wireless control panel after calculating. Thus to form a security system

• Mode Settings

• Testing Mode- Press test button, the sensor enters testing mode and detects once every 10 seconds. After 3 minutes, the LED flashes twice, the sensor enters the working mode

• Working Mode- In working state, if the sensor is triggered twice within 3 minutes, it will enter sleeping mode to save power. After no movement within next 3 minutes, the sensor goes back to the working mode

• LED Indication- i) Flash continuously- Under self testing state; ii) Flash once- Intruder is detected; iii) Flash twice- Self testing is finished, enters working mode; iv) Flash once every 3 seconds- Undervoltage indication, please change the batteries immediately

• Accurate Detection- 360 degree, no dead angle. Automatic temperature compensation and anti-air turbulence technology

• False Alarm Prevention- Digital dual-core fuzzy logic infrared control processing technology. Effectively identify interference signals from body movement signal through intelligent analysis

• Space-saving- Ceiling mounted, not much space occupation. Integrated to home decoration, suitable for luxury premises

• Energy Saving- Featured energy saving mode enables 1 year standby
