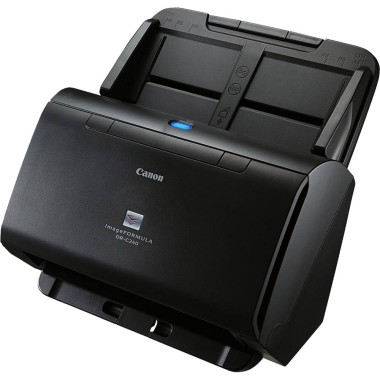

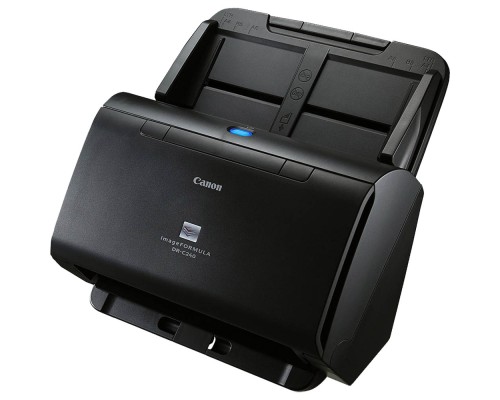

CANON DR-C240 IMAGEFORMULA DUPLEX DOCUMENT SCANNER
Canon DR-C240 high-volume business scanner is designed to digitise document workflows with speed and precision. Ideal for businesses handling diverse document formats, this compact yet powerful scanner processes up to 4,000 scans per day, making it perfect for offices, financial institutions, healthcare providers, and government agencies.
Equipped with advanced OCR and automated image enhancements, the DR-C240 ensures that scanned files are clear, searchable, and ready for storage or integration into your existing document management systems. It supports duplex scanning at 45 ppm / 90 ipm and features a 60-sheet Automatic Document Feeder (ADF) to streamline batch scanning tasks.
Key features like Ultrasonic Double Feed Detection and Double Feed Release (DFR) prevent workflow interruptions, while independently operating large feed rollers help minimize paper skewing — especially when working with mixed document sizes or smaller sheets.
Product Type: Desktop Sheet-Fed Scanner
Scanning Technology
Scanning Sensor Unit: CMOS CIS, 1-Line Sensor
Optical Resolution: 600 dpi
Output Resolution: 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Light Source: RGB LED
Scanning Side: Simplex / Duplex (Front & Back)
Output Modes:
Black & White / Error Diffusion
Advanced Text Enhancement I & II
8-bit Grayscale (256 levels)
24-bit Colour
Performance
Scanning Speed (A4)
Black & White
200 dpi: 45 ppm (Simplex) / 90 ipm (Duplex)
300 dpi: 45 ppm (Simplex) / 90 ipm (Duplex)
Colour
200 dpi: 30 ppm (Simplex) / 60 ipm (Duplex)
300 dpi: 20 ppm (Simplex) / 40 ipm (Duplex)
Suggested Daily Duty Cycle: Approx. 4,000 scans/day
Media Handling
Document Size
Plain Paper: Width: 50.8–216 mm; Length: 54–356 mm
Long Document Mode: Up to 3,000 mm
Business Card: Min. 50.8 x 85 mm
Plastic Card: 53.9 x 85.5 mm (up to 1.4 mm thickness embossed)
Passport: Up to 4 mm thick (using carrier sheet)
Document Thickness
Plain Paper: 27–209 g/m² (0.06–0.25 mm)
Business Card: <0.45 mm
Plastic Card: 0.76 mm (Embossed: up to 1.4 mm)
Feeder Capacity: Up to 60 sheets (6 mm stack)
Paper Separation: Retard Roller Method
Connectivity & Power
Interface: High-Speed USB 2.0
Power Requirements: AC 100–240V, 50/60 Hz
Power Consumption:
Operating: Max. 22 W
Sleep Mode: Max. 1.7 W
Power Off: Max. 0.5 W
Environmental
Operating Temperature: 10–32.5 °C
Operating Humidity: 20–80% RH (non-condensing)
Environmental Compliance: RoHS, ENERGY STAR®
Physical Characteristics
Dimensions (W x D x H):
Trays Closed: 291 x 175 x 182 mm
Trays Opened: 291 x 603 x 363 mm
Weight: Approx. 3 kg
Features & Image Processing
Automatic Page Size Detection
Deskew, 3D Colour Correction
RGB Colour Dropout / Enhancement
Auto Colour Detection
Shadow Cropping, Moiré Reduction
Background Removal / Smoothing
Adjustable Gamma, Contrast Arrangement
Auto Resolution Setting
MultiStream Support
Skip Blank Page, Folio Mode
Double Feed Detection (Ultrasonic & Length)
Double Feed Release, Batch Separation (via patch code or blank sheet)
Bundled Software & Drivers
ISIS / TWAIN Driver (Windows Vista SP2 and later)
Plug-in: EMC Captiva Cloud Runtime Controls
Applications:
Kofax Power PDF
Operating System Support:
Windows Vista SP2, 7 SP1, 8, 8.1
Windows Server 2008 R2 SP1, 2012 R2
Consumables & Accessories
Consumables:
Exchange Roller Kit
Carrier Sheet (Passport / A4)
Optional Accessories:
Flatbed Scanner Unit 101 / 201
Barcode Module
2D Code Module
