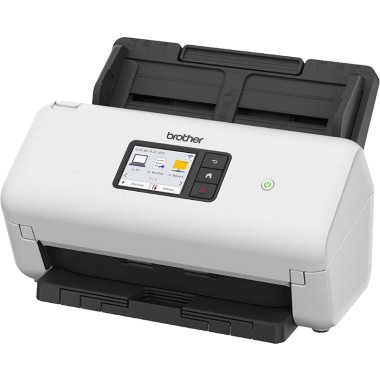

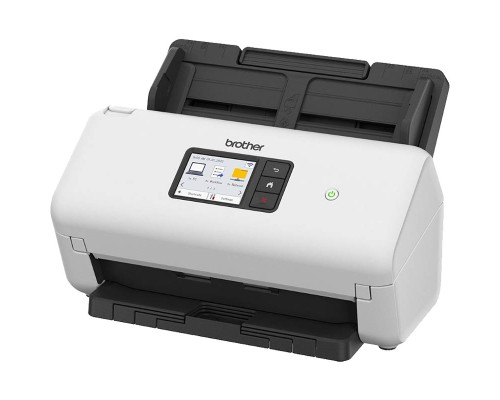

BROTHER ADS-3300W WIRED AND WIRELESS NETWORK DOCUMENT SCANNER A4
The Brother ADS-3300W is an efficient, reliable, and feature-rich duplex document scanner tailored for professional environments. With fast scanning speeds, 600 dpi optical resolution, and an 80-sheet ADF, it’s ideal for high-volume document handling. The Wi-Fi Direct functionality, coupled with advanced security features, makes it perfect for both individual and team-based environments. Furthermore, its energy-efficient design and compliance with TWAIN, WIA, and ISIS™ standards ensure easy integration into your document management system, providing optimal performance across both Windows and macOS platforms.
Whether for a small office or a large enterprise, the ADS-3300W offers high-quality, fast, and secure scanning, improving productivity while maintaining professional standards.
Specifications
General Overview
Model: Brother ADS-3300W
Product Type: Sheet-fed, Duplex (Double-sided scanning in a single pass)
Product Dimensions
Width: 299.5 mm
Depth: 190.5 mm
Height: 215.9 mm
Weight: 2.68 kg
Warranty: 1-Year Return to Base Warranty
Scanning Capabilities
Optical Resolution: 600 dpi x 600 dpi (for detailed, high-quality scans).
Interpolated Resolution: Up to 1,200 dpi x 1,200 dpi (for enhanced image quality).
Color Depth
Input: 48-bit color processing for superior color accuracy.
Output: 24-bit color processing for optimized image quality.
Grayscale Depth: 256 levels of grayscale, offering smooth and detailed black-and-white scans.
Scanning Speed
Single-Sided (Simplex): Up to 40 ppm (pages per minute) at 300 dpi.
Double-Sided (Duplex): Up to 80 ipm (images per minute) at 300 dpi.
ADF (Automatic Document Feeder):
Capacity: 60 sheets (20 lb / 80 g/m² A4/Letter size).
Paper Type: Supports various media types, including plain paper, photos, plastic cards, and business cards.
Paper Handling:
Document Sizes:
Single Paper: Width: 50.8 mm to 215.9 mm, Length: 50.8 mm to 355.6 mm.
Multiple Papers: Width: 50.8 mm to 215.9 mm, Length: 50.8 mm to 355.6 mm.
Scanning Width: Up to 215.9 mm (ideal for standard-sized documents).
Paper Weight: 20 lb to 255 g/m².
Display and User Interface
Display
71.1 mm (2.8-inch) TFT color touchscreen LCD.
Offers an intuitive interface for easy operation, menu selection, and real-time scan previews.
Connectivity Options
USB 3.0: Provides fast data transfer for seamless integration into computer environments.
LAN (Wired Ethernet): 10Base-T/100Base-TX for stable and secure network connections.
Wireless LAN
2.4 GHz (Infrastructure Mode: IEEE 802.11b/g/n).
Wi-Fi Direct: Enables direct wireless connection with compatible devices without requiring a router.
Wireless Security
Network Security Protocols:
WEP 64/128-bit
WPA-PSK (TKIP/AES)
WPA2-PSK (AES)
WPA3: Advanced security for the latest encryption standards.
Network Setup Utilities
WPS (Wi-Fi Protected Setup) for easy wireless setup.
WLAN Assistant: Assists in troubleshooting and managing wireless connections.
Power Consumption
Power Source: AC 100-240V, 50/60 Hz.
Scanning Mode: 25W for efficient energy use during active scanning.
Ready Mode: 7.3W.
Power Save / Deep Sleep Mode: 1.7W (low power usage when idle).
Power Off: 0.1W (minimizes power consumption when not in use).
Environmental Specifications:
Operating Temperature: 5°C to 35°C.
Operating Humidity: 20% to 80% (non-condensing).
Storage Temperature: -25°C to 60°C.
Storage Humidity: 10% to 90%.
Compliance:
TWAIN Compliant (Windows):
Windows Server 2012 / 2012 R2 / 2016 / 2019.
Windows 7 (SP1) / Windows 8.1 / Windows 10.
TWAIN Compliant (Mac OS):
macOS v10.14.x, 10.15.x, 11.0.x, 11.1.x.
WIA Compliant (Windows):
Windows 7 (SP1) / Windows 8.1 / Windows 10.
ICA Compliant (Mac OS):
macOS v10.14.x, 10.15.x, 11.0.x, 11.1.x.
ISIS™ Compliant (Windows):
Windows 7 (SP1) / Windows 8.1 / Windows 10.
Additional Features:
Security: Supports WPA3 encryption for secure wireless scanning.
Document Management: Ideal for integration with document management software, helping streamline workflow processes.
Energy Star Certified: Designed for energy efficiency, reducing both environmental impact and operating costs.
Auto Document Detection: The scanner automatically detects document size and orientation, minimizing the risk of errors.
Versatile Media Handling: Suitable for scanning documents, business cards, photos, and even plastic cards.
Package Contents:
Brother ADS-3300W Scanner
AC Adapter
USB 3.0 Cable
Quick Setup Guide
