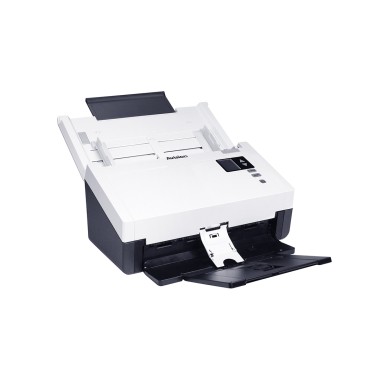

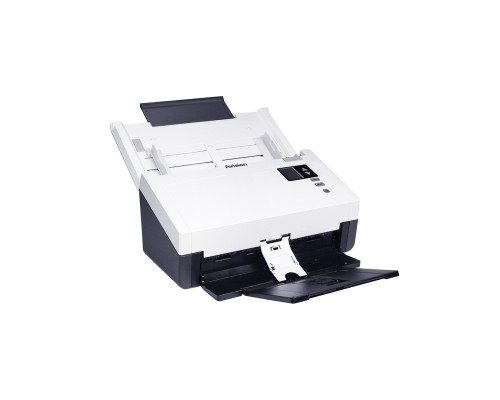

AVISION AD345GWN DUPLEX A4 DOCUMENT SCANNER
Avision AD345GF document scanner is a high-speed duplex scanner designed for businesses, offices, and professional environments needing efficient bulk document scanning. Featuring both a flatbed and 100-sheet ADF, it offers versatile scanning for everything from fragile documents to multi-page files at speeds up to 60 ppm / 120 ipm.
With a 600 dpi optical resolution (enhanced up to 1200 dpi), this professional document scanner delivers sharp, high-quality scans in color, grayscale, or black & white. It supports a wide range of media sizes and paper weights—including plastic ID cards and thick paper up to 413 g/m²—making it ideal for ID scanning, legal paperwork, contracts, and archival imaging.
The Avision AD345GF supports advanced output formats like PDF, OCR, TIFF, Word, Excel, and more, making it perfect for digital workflows and document management systems. It comes bundled with powerful software including TWAIN & ISIS drivers, AVScan, PaperPort, and Button Manager, ensuring seamless integration and automation.
Thanks to its USB 3.2 Gen1x1 connectivity, energy-efficient design, and 10,000-sheet daily duty cycle, the AD345GF is a reliable, high-performance choice for organizations demanding productivity, versatility, and durability in a compact footprint.
General Information
Product Type: High-Speed Duplex Document Scanner with Flatbed
Model: AD345GF
Manufacturer: Avision
Scanning Performance
Scanner Type: Duplex Sheet-fed Scanner with Integrated Flatbed
Scanning Speed:
Simplex: Up to 60 ppm (pages per minute)
Duplex: Up to 120 ipm (images per minute)
Optical Resolution: 600 dpi
Enhanced Resolution: Up to 1200 dpi (via software interpolation)
Image Output Bit Depth:
Color: 48-bit input, 24-bit output
Grayscale: 16-bit input, 8-bit output
Monochrome: 1-bit
Media and Paper Handling
ADF Capacity: Up to 100 sheets (75–80 g/m² plain paper)
Paper Sizes Supported:
Minimum: 50 x 50 mm (2 x 2 in.)
Maximum: 242 x 356 mm (9.5 x 14 in.)
Flatbed Size: A4 / Letter
Paper Weight Range:
Standard: 27 – 413 g/m² (7 – 110 lb)
Plastic/Embossed Cards: Up to 1.25 mm thickness
Supported Media Types: Plain paper, thick paper, plastic cards (embossed or flat), receipts, photos, fragile documents via flatbed
Connectivity
Interface: USB 3.2 Gen1x1 (backward compatible with USB 2.0)
Software & Drivers
Bundled Software:
TWAIN & ISIS Drivers
WIA Driver
Button Manager
AVScan
PaperPort (Document Management)
Operating System Support:
Windows XP, Vista, 7, 8, 10 (32-bit & 64-bit)
Power & Environmental
Power Consumption:
Operating: < 38 W
Ready Mode: < 6 W
Sleep Mode: < 1.8 W
Power Off: < 0.2 W
Environmental Compliance: RoHS, ENERGY STAR® (varies by region)
Physical Specifications
Dimensions (W x D x H):
Maximum: 316 x 680 x 239 mm (12.4 x 26.8 x 9.4 in.)
Minimum: 316 x 191 x 168 mm (12.4 x 7.5 x 6.6 in.)
Weight: 4.3 kg (9.48 lb)
Performance & Usability
Daily Duty Cycle: Up to 10,000 sheets per day – ideal for high-volume departments
Use Case Suitability:
Offices (HR, Legal, Finance, Admin)
Libraries and Schools
Medical Records
Digital Archiving
Back-file Conversion Projects
Key Features:
Flatbed for delicate items or books
Ultrasonic multi-feed detection (if applicable)
One-touch scan with programmable buttons via Button Manager
Extensive file format support including searchable PDF, JPEG, TIFF, Word, Excel, and OCR
